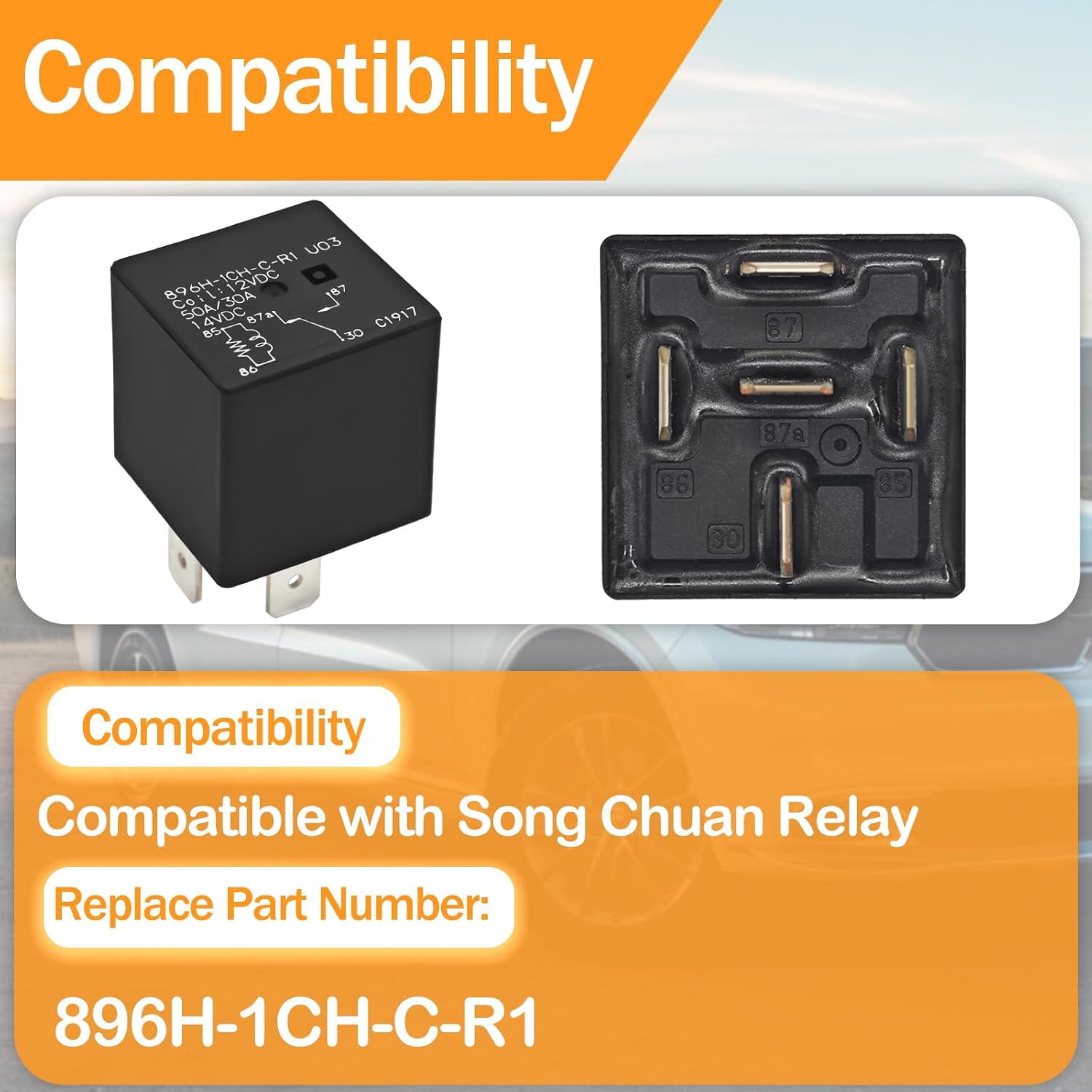

896H-1CH-C-R1-U03 Automotive Relay (Pack of 4) - 12VDC SPDT 5-Pin 50A Plug-in Power Relay
Product details
| Management number | 233906852 | Release Date | 2026/06/27 | List Price | US$6.00 | Model Number | 233906852 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
High-Capacity Automotive Power Relay The 896H-1CH-C-R1-U03 automotive relay provides robust 50A switching capability for demanding vehicle electrical systems. This SPDT 5-pin relay features a plug-in design that simplifies installation while delivering reliable performance in challenging automotive environments where exposure to contaminants and temperature extremes is common. Technical Specifications Contact Configuration: SPDT (Single Pole Double Throw) Coil Voltage: 12VDC ±10% Current Rating: 50A maximum Terminal Type: 5-pin plug-in with flux tight seals Operating Temperature: -40°C to 85°C Contact Material: Silver alloy for minimal voltage drop Mounting Style: Standard automotive relay socket Primary Applications High-power accessory circuits Off-road lighting systems Winch and power equipment control Dual-circuit switching applications Automotive aftermarket installations Truck and SUV electrical systems Installation & Compatibility Direct plug-in replacement for compatible 5-pin sockets Color-coded wiring for proper circuit identification Standard automotive relay dimensions Compatible with most 12VDC automotive electrical systems Installation Notes Verify existing relay specifications before installation Disconnect negative battery terminal before beginning work Match pin configuration to original relay orientation Ensure complete seating in relay socket Test system operation before final reassembly Package Includes 4 × 896H-1CH-C-R1-U03 12VDC SPDT Relays
- 50A High-Current Capacity: Rated for 50A at 12VDC, providing reliable switching for demanding automotive applications including winches, lighting systems, and high-power accessories
- SPDT 5-Pin Configuration: Single Pole Double Throw design with 5-pin layout enables switching between two separate circuits, suitable for applications requiring alternate power routing
- Environmental Durability: Engineered to withstand harsh automotive environments including moisture, dust, vibration, and extreme temperature fluctuations
- Flux Tight Terminal Construction: Sealed terminals prevent flux ingress and corrosion, ensuring consistent electrical connectivity and long-term reliability
- Proven Automotive Application: Widely used in automotive industry applications where dependable high-current switching performance is required
| ASIN | B0FRXVMF3Q |
|---|---|
| Brand Name | Casalytics |
| Unit Count | 4.0 Count |
| Part Number | CASA896H1CHCR1N4P |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | Casalytics |
| Mounting Type | Socket Mount |
| Connector Type | Plug-In |
| Current Rating | 50 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver Alloy |
| Contact Current Rating | 50 Amps |
| Minimum Switching Voltage | 11.4 Volts (DC) |
