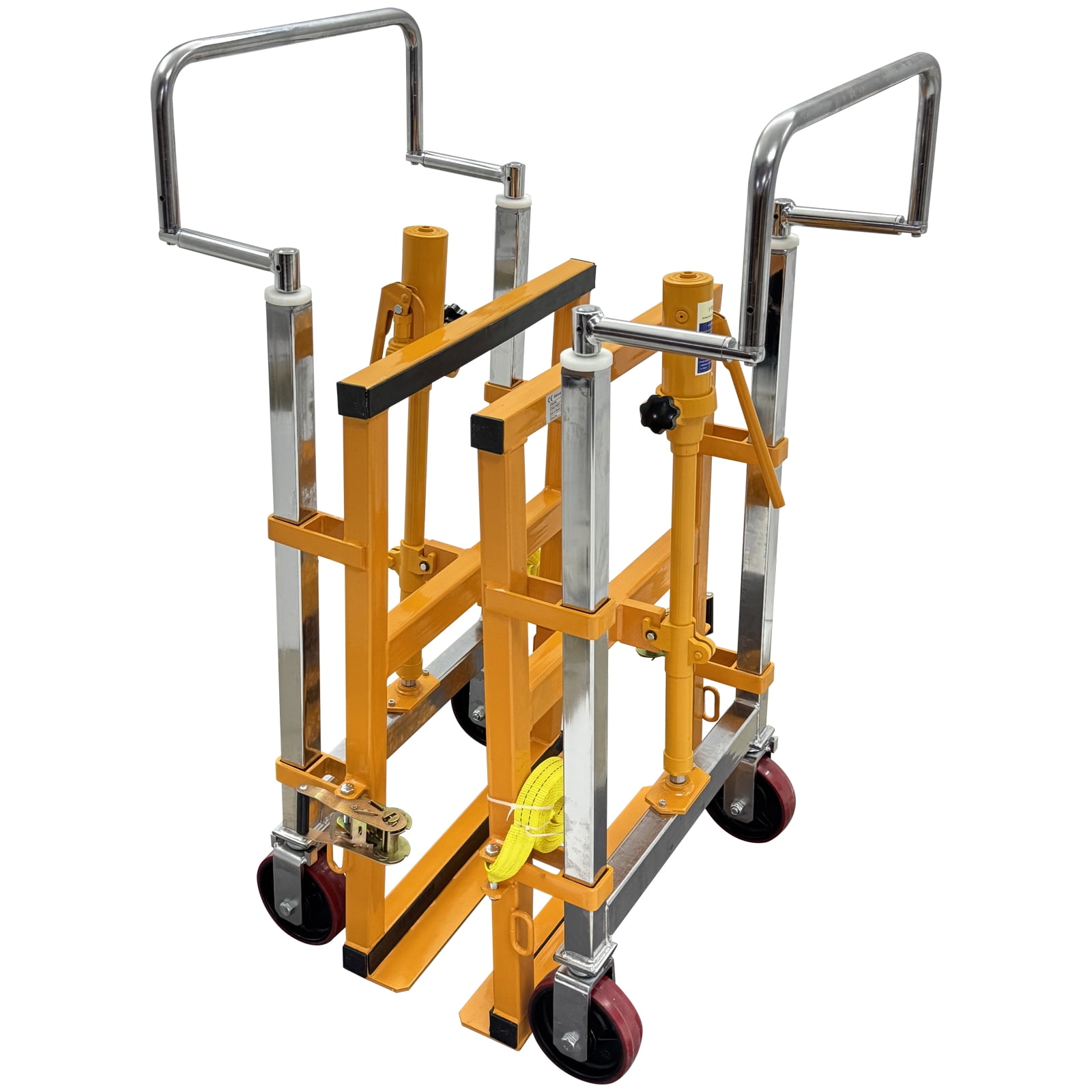

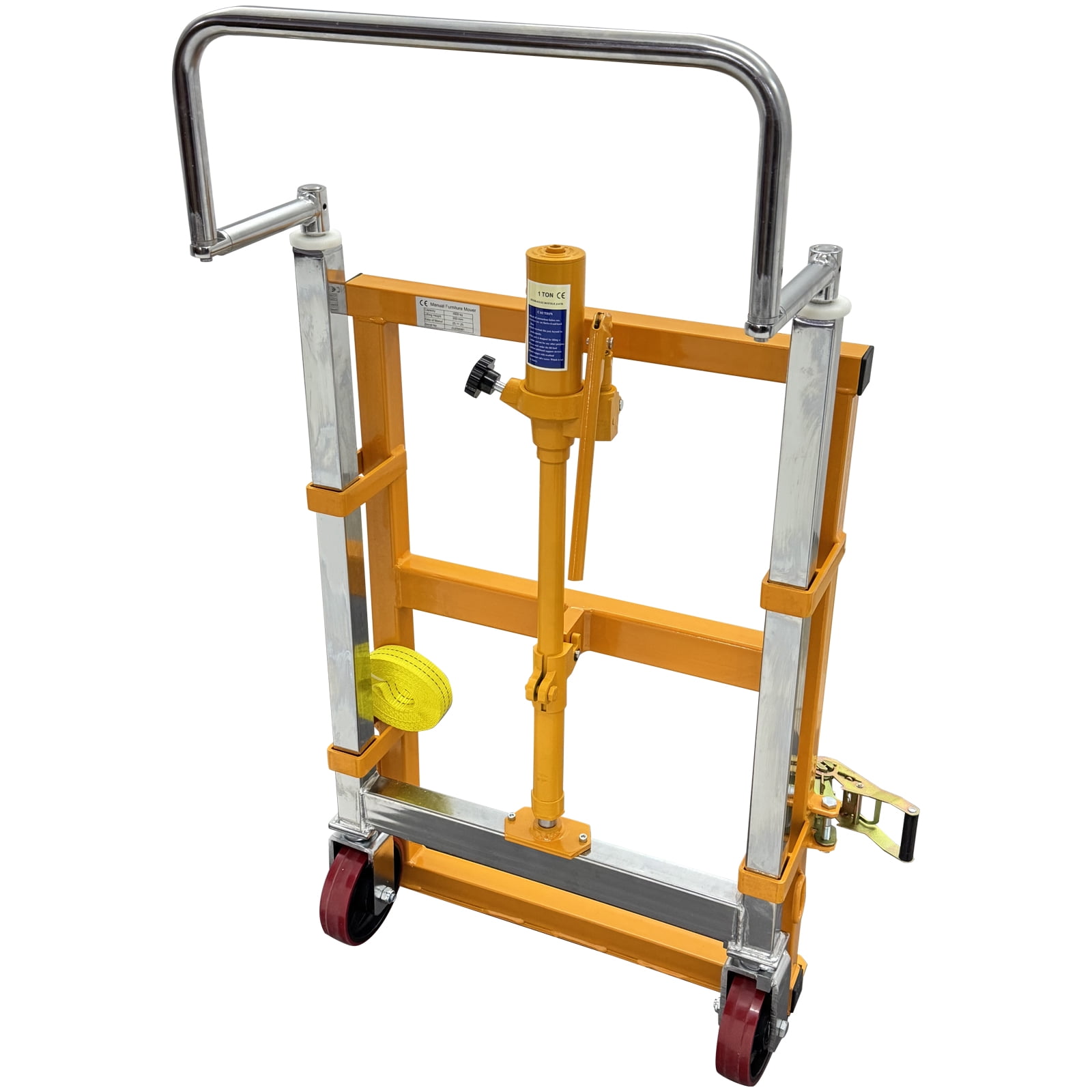

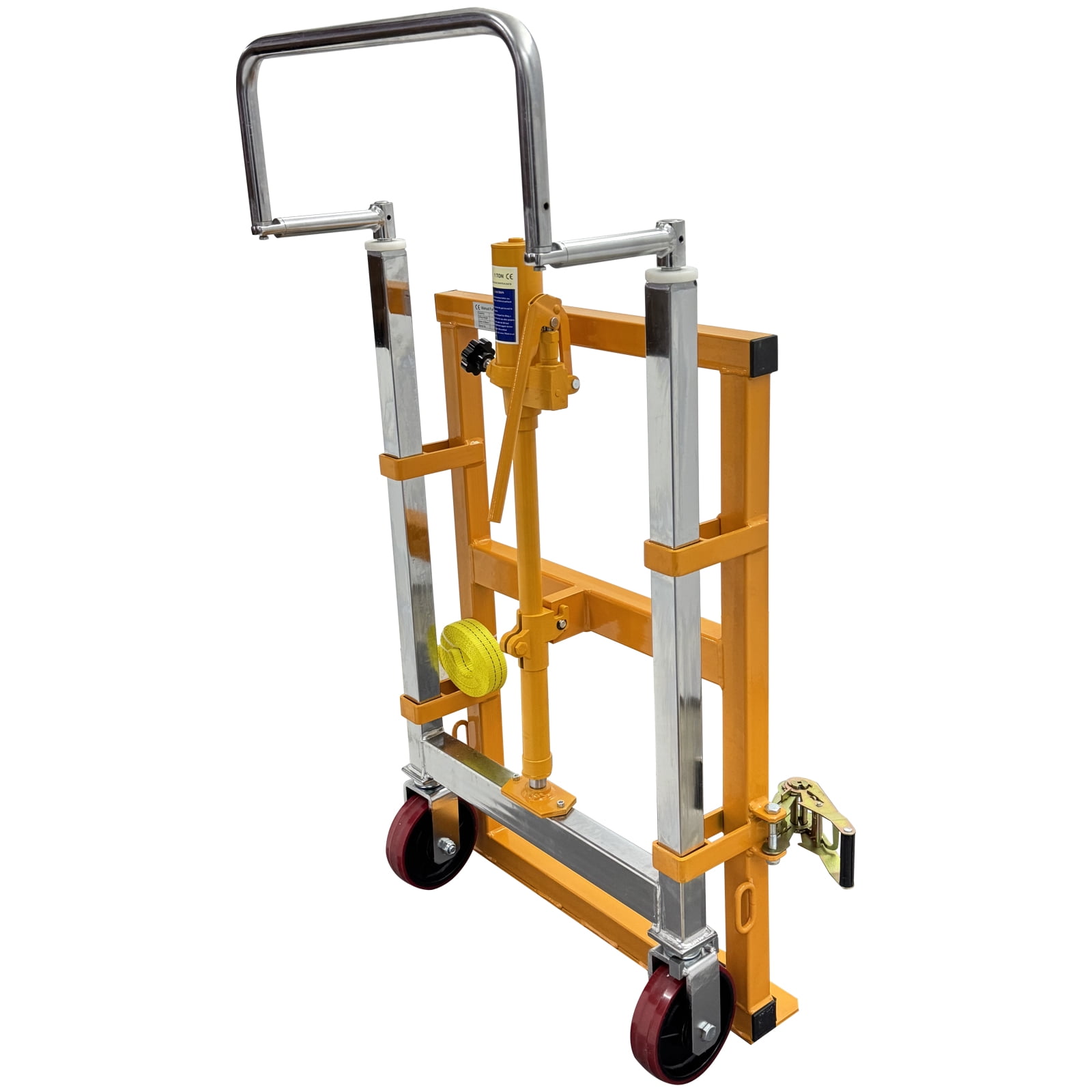

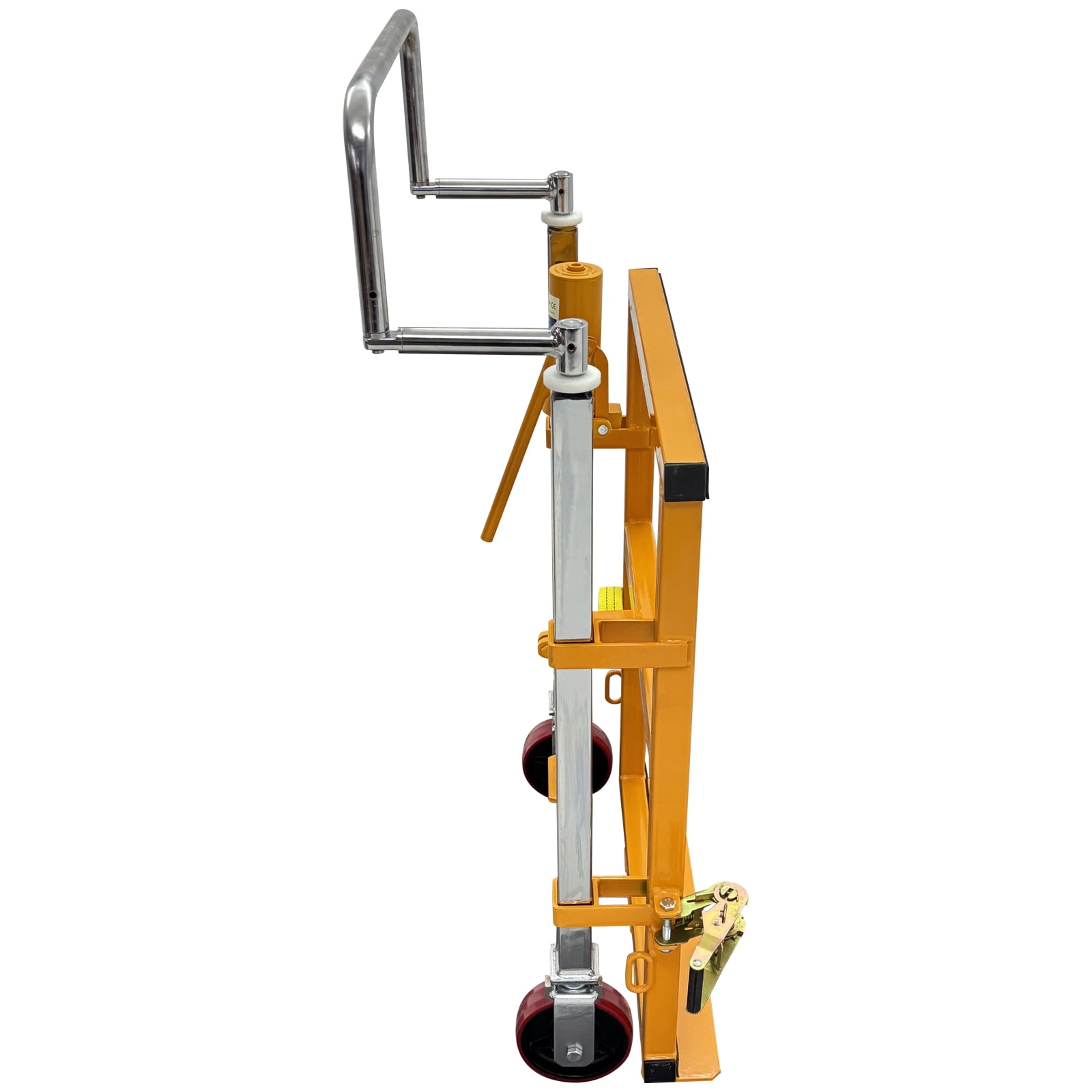

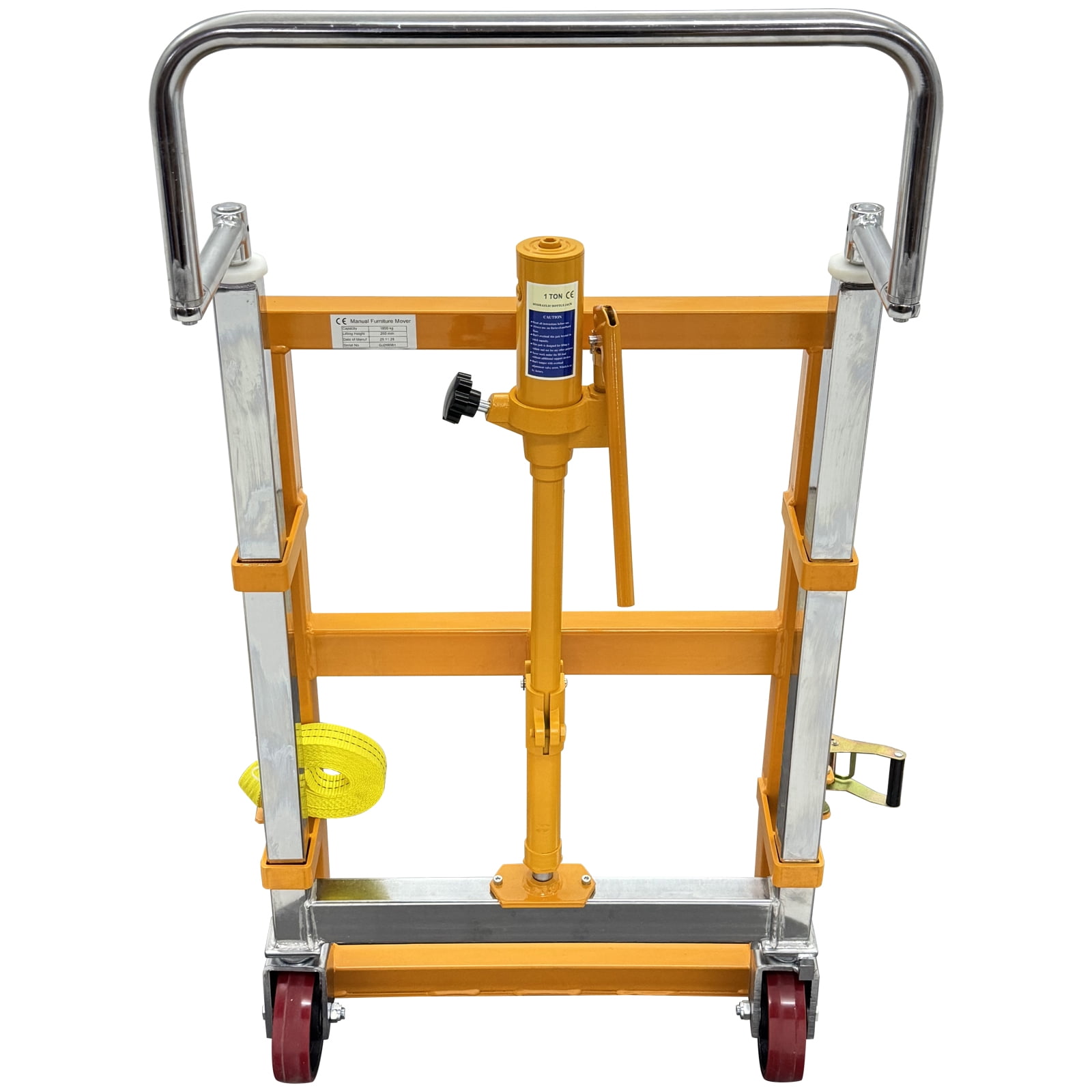

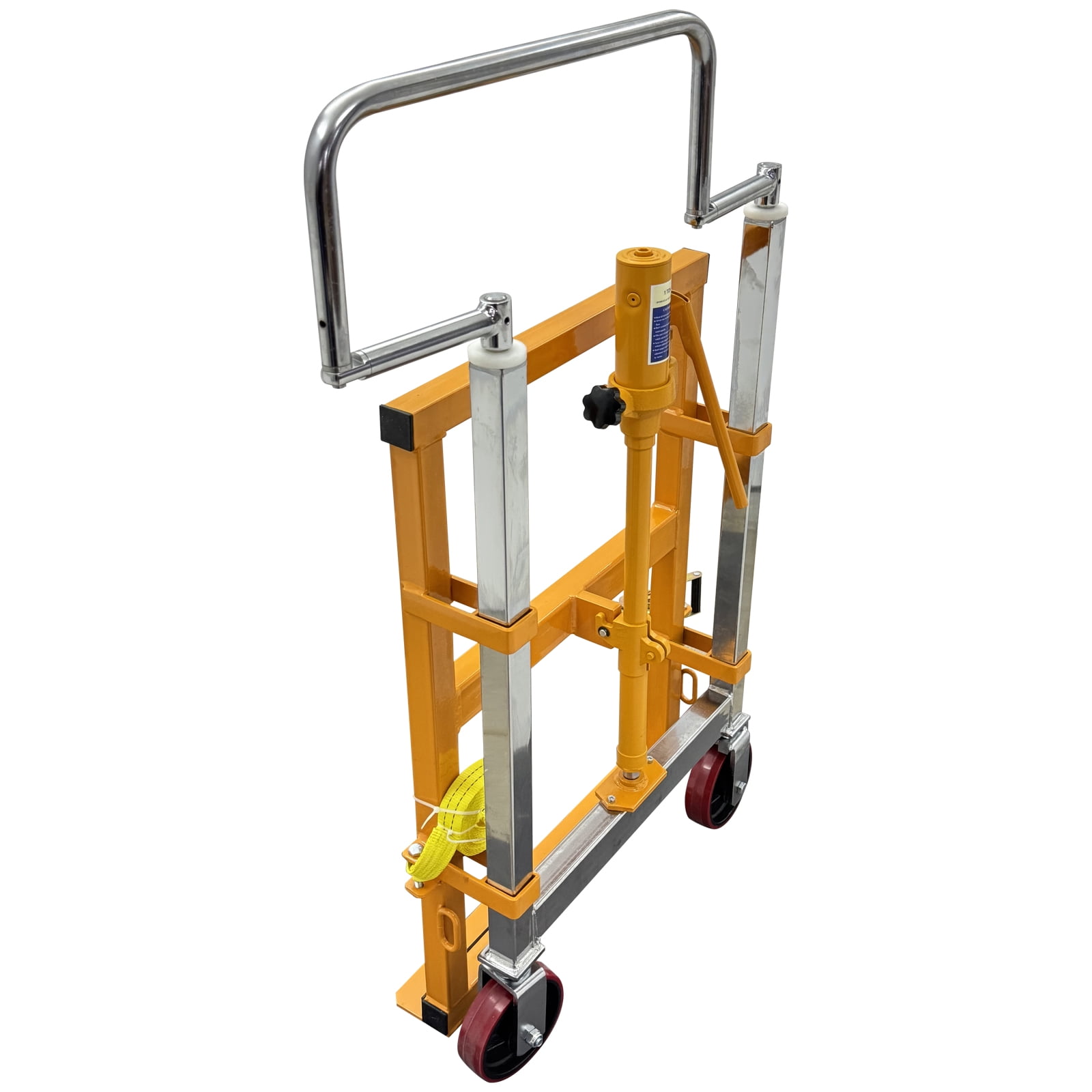

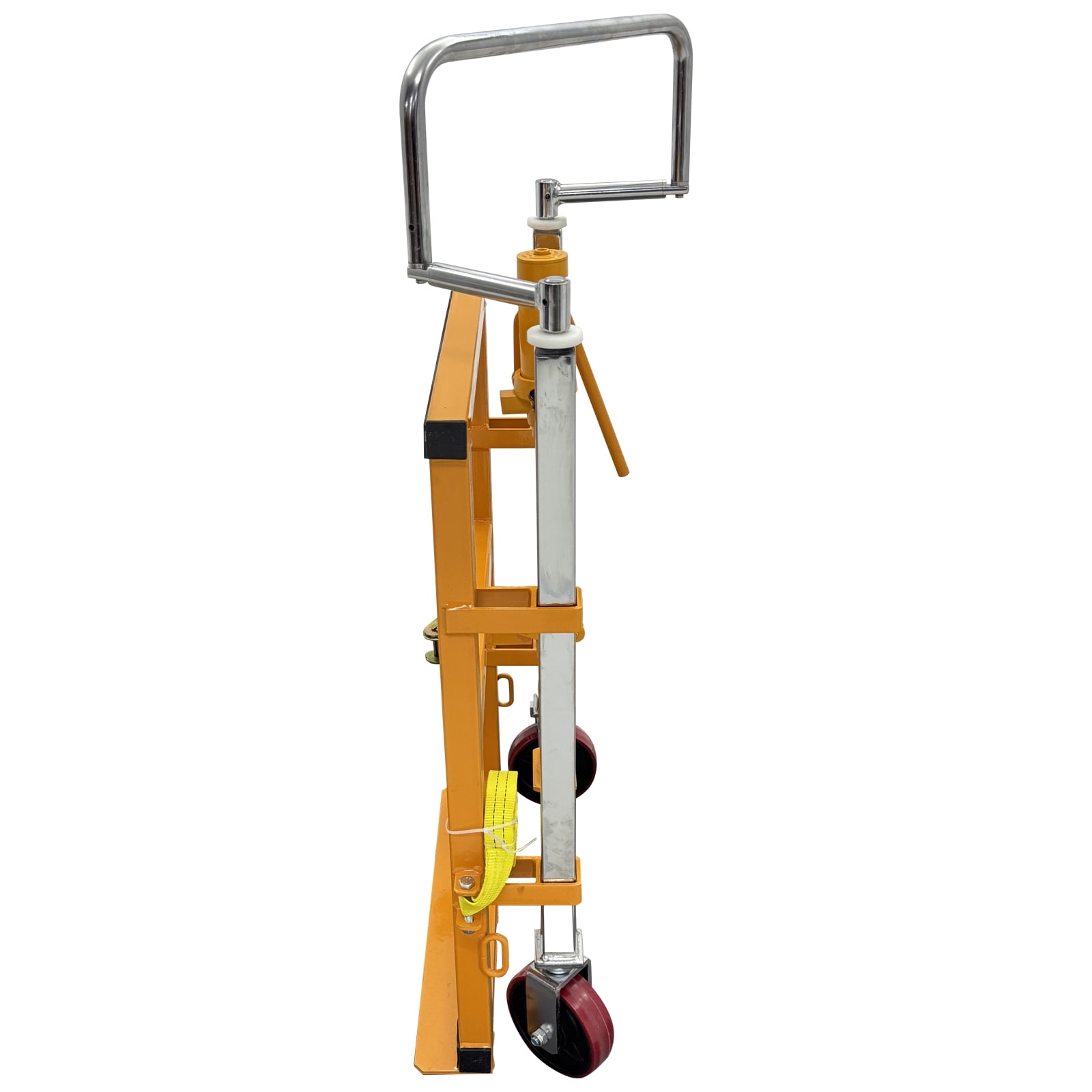

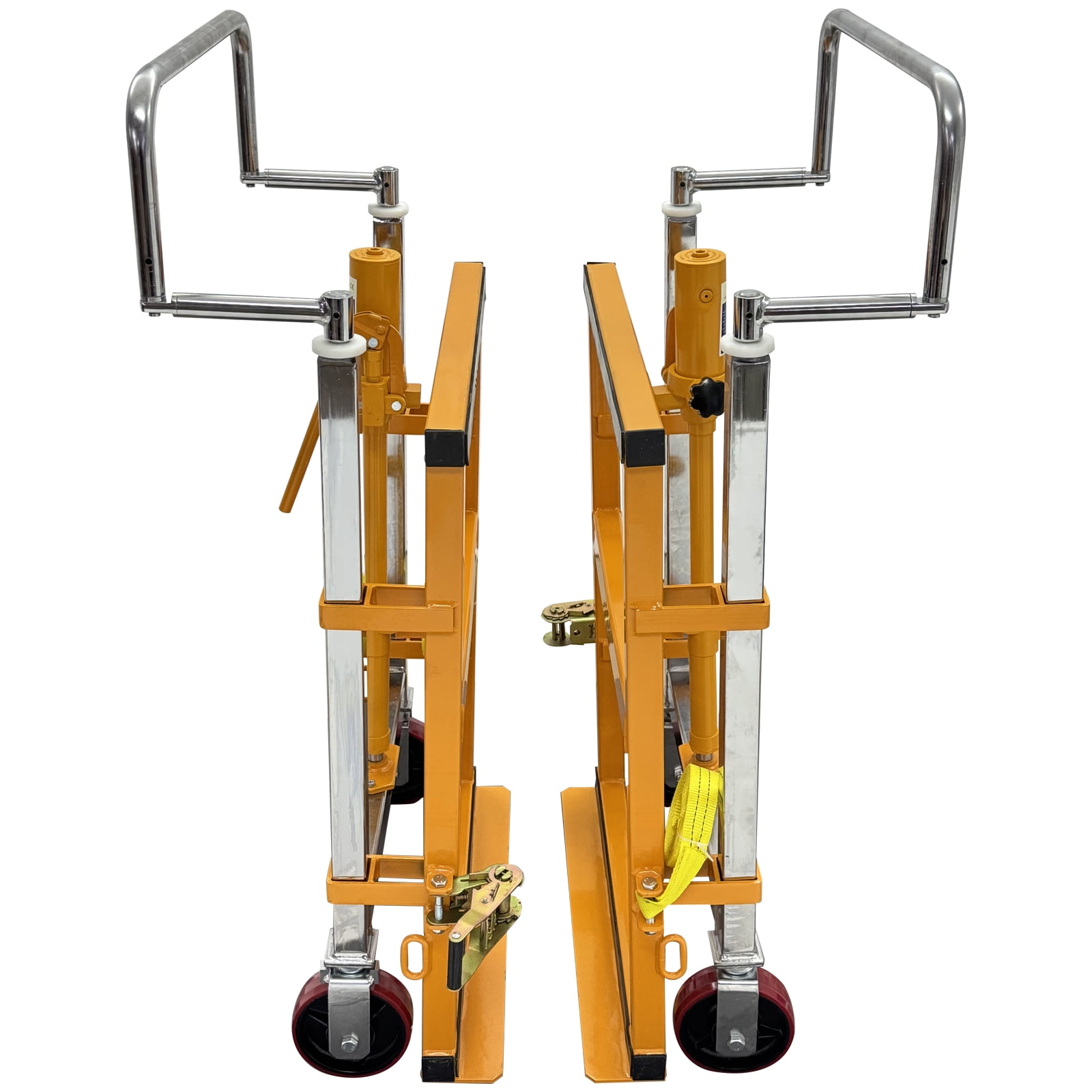

Hydraulic Furniture Mover 1.8T Hand Truck Heavy Duty Furniture Moving Tool

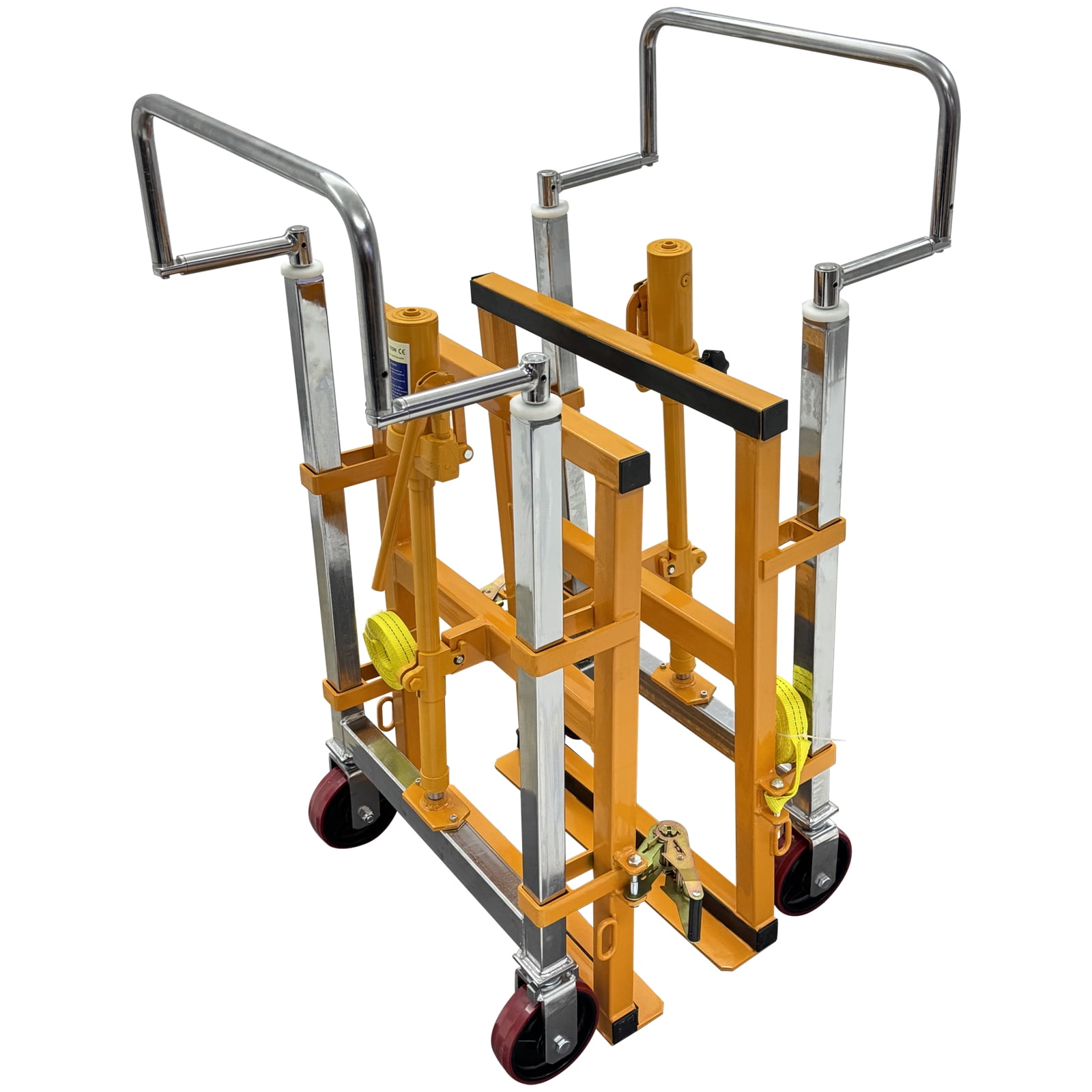

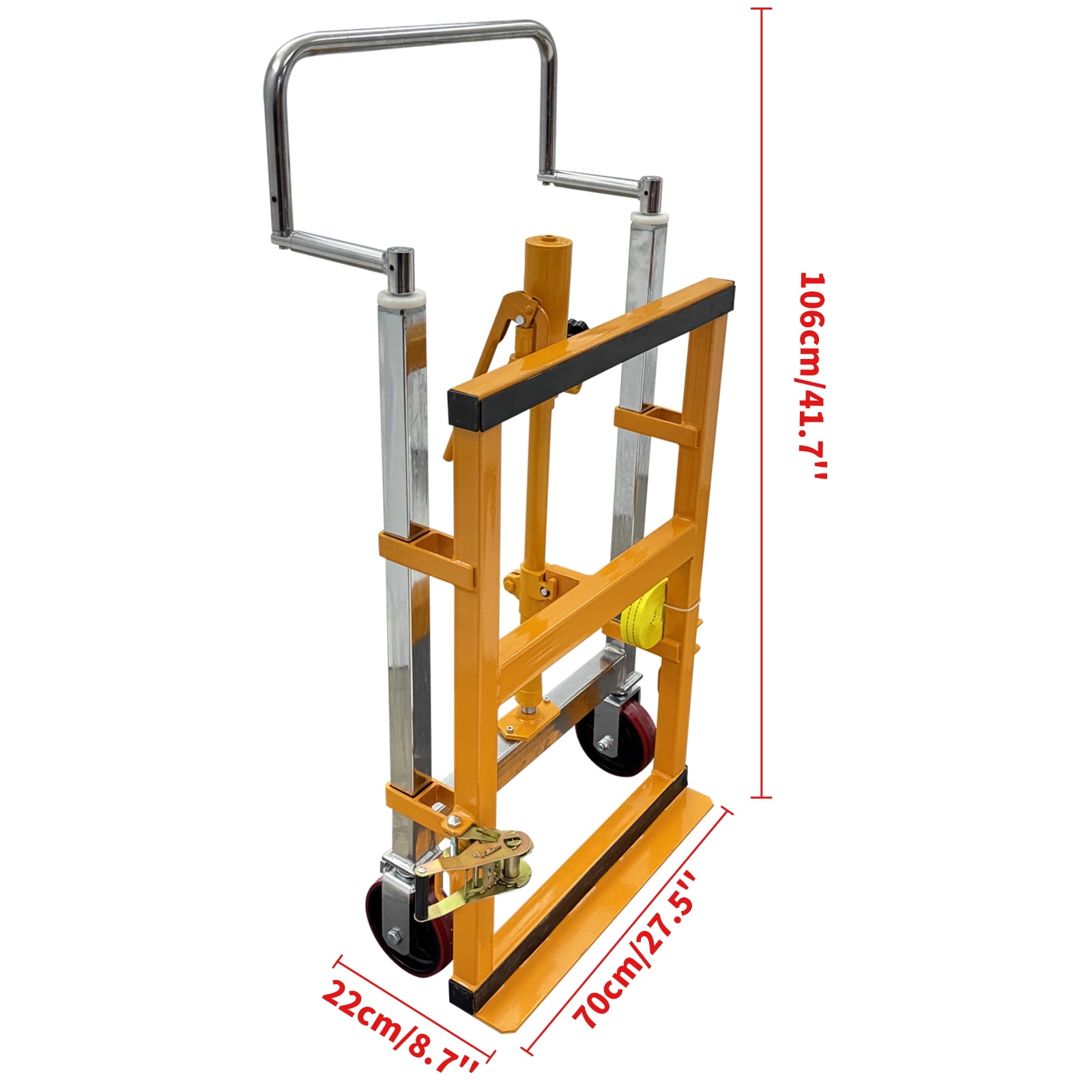

<p>Product Overview:<br>The manual furniture mover has been developed for lifting and transporting cabinets and other large regular objects. For this reason, its supports are covered with foam rubber to prevent the goods being transported from damage. Since the hydraulic furniture mover consists of two units, rectangular objects of different lengths can be moved by using a minimum of space. Due to the weight of the cabinet on the platform, it will hold itself in position when the units are standing vertically and the frame of the platform is in contact with its sides. If you operate it properly, our hydraulic furniture mover will help you to move cabinets, furniture and other things quickly and safely.</p> <p>Note: There are two transporting units in one set.</p> <p>Product Parameters:<br>Model: FM180B<br>Capacity: 1800kg (4000LBs)<br>Lifting Height: 250mm (9.8in)<br>Size of Lifting Plate: 600*60mm (23.6*2.3 inches)<br>Polyurethane Wheel: Φ150mm (5.9in)<br>Size of Each Unit: 70*22*106cm (27.5*8.7*41.7 inches)<br>Total Net Weight: 85.5kg (188.5LBs)</p> <p>Precautionn:<br>1. The floor must be absolutely level, smooth and clean. There must be no inclines or slopes. Make sure that the floor and the<br>floor covering are to stand up to the load formed by the weight of the furniture being transported.<br>2. Check whether the cabinet or furniture to be transported contains any loose objects. These will have to be removed, or secured to avoid accidents.<br>3. Check whether the furniture is strong enough for the two opposite sides to take the weight of the piece via the transport units' platforms, and whether the upper supports of the transport units can hold the furniture to be transport without damaging it.<br>4. Find the weight of the furniture to be transported. The maximum load of 1800 kg/pair, that is, 900 kg for each unit must not be exceeded.<br>5. Find the center of gravity of the furniture to be transported. Along the furniture base, it is the decisive for the load that a single transport unit can bear, across the base, for the center of the transport unit, and, in connection with the height, for the moment of tilting that occurs when moving the furniture. When in use, the height of the center of gravity must not exceed 0.8m. The distance of the transport units to one another must not be less than 0.5m and no more than 4.0m (furniture of the securing straps).<br>6. Never use this equipment for towing by a vehicle. </p> <p>Item included (057313):<br>Techtongda Hydraulic Machinery &amp; Equipment Mover</p>

• For professional transport of heavyweight items.
• Ideal for delivery, removal, maintenance and assembly applications.
• For transporting cupboards, safes, containers and heavy machinery.

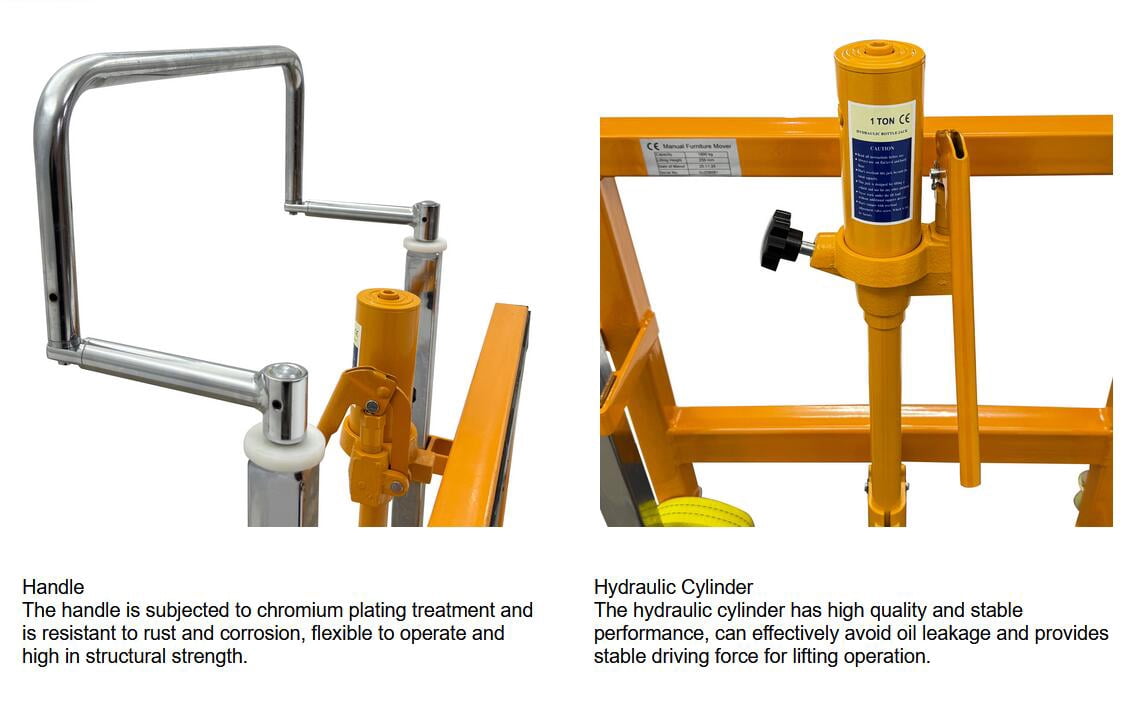

• The hydraulic cylinder has high quality and stable performance, can effectively avoid oil leakage and provides stable driving force for lifting operation.

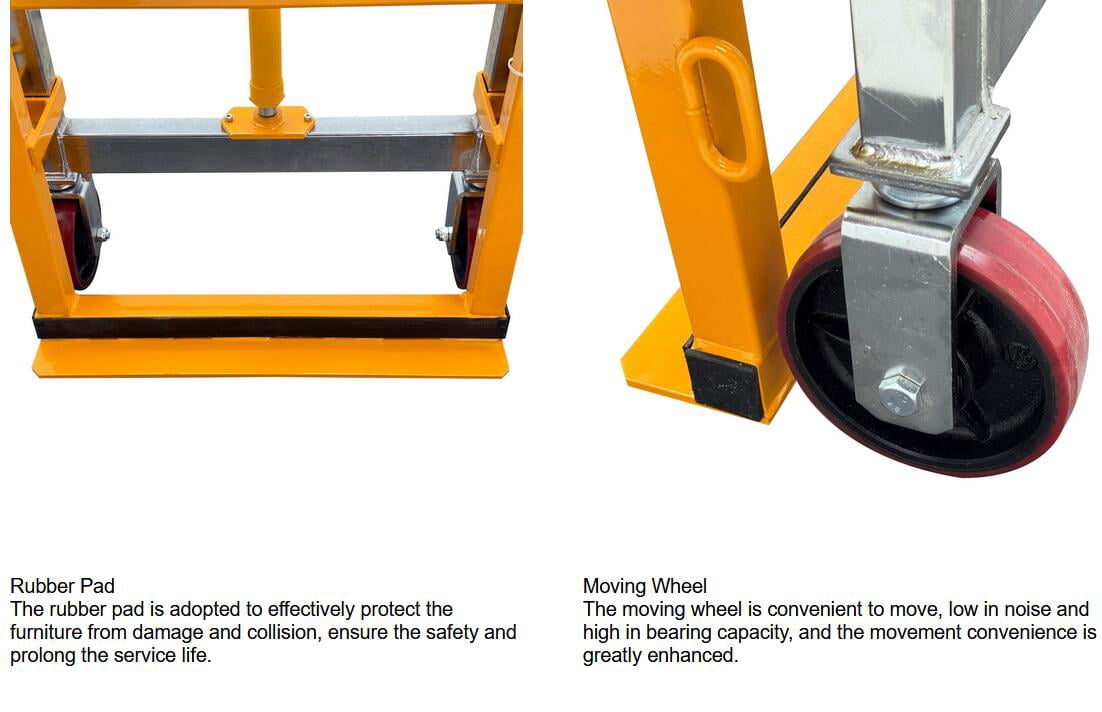

• The moving wheel is convenient to move, low in noise and high in bearing capacity, and the movement convenience is greatly enhanced.
