Lab Vacuum Pump, Oil Diaphragm Vacuum Pressure Pump, Single/Dual Pressure Mode, Max Vacuum 0.09MPa,for Liquid Filtration (15N)

Product Specifications: Product Name: Oil Diaphragm Vacuum Pump Specifications: 15, 15N, 20N, 20A Maximum Vacuum: 0.09MPa Net Weight: 2kg Dimensions: 178x197x165mm 15 Number of Pump : 1 Negative Pressure, 1 Positive Pressure Positive Pressure: 40psi Pump Speed: 15L/min Power: 35W 15N Number of Pump : 1 Negative Pressure Pump Speed: 15L/min Power: 35W 20N Number of Pump : 1 Negative Pressure Pump Speed: 20L/min Power: 36W 20A Number of Pump : 1 Negative Pressure, 1 Positive Pressure Positive Pressure: 40psi Pump Speed: 0-20L/min Power: 36W

• 【Oil design】: Innovative diaphragm technology enables truly maintenance , preventing oil mist from contaminating laboratory samples and reducing laboratory costs. The integrated ABS materials is resistant to a variety of chemicals, including acids, alkalis, and grease.

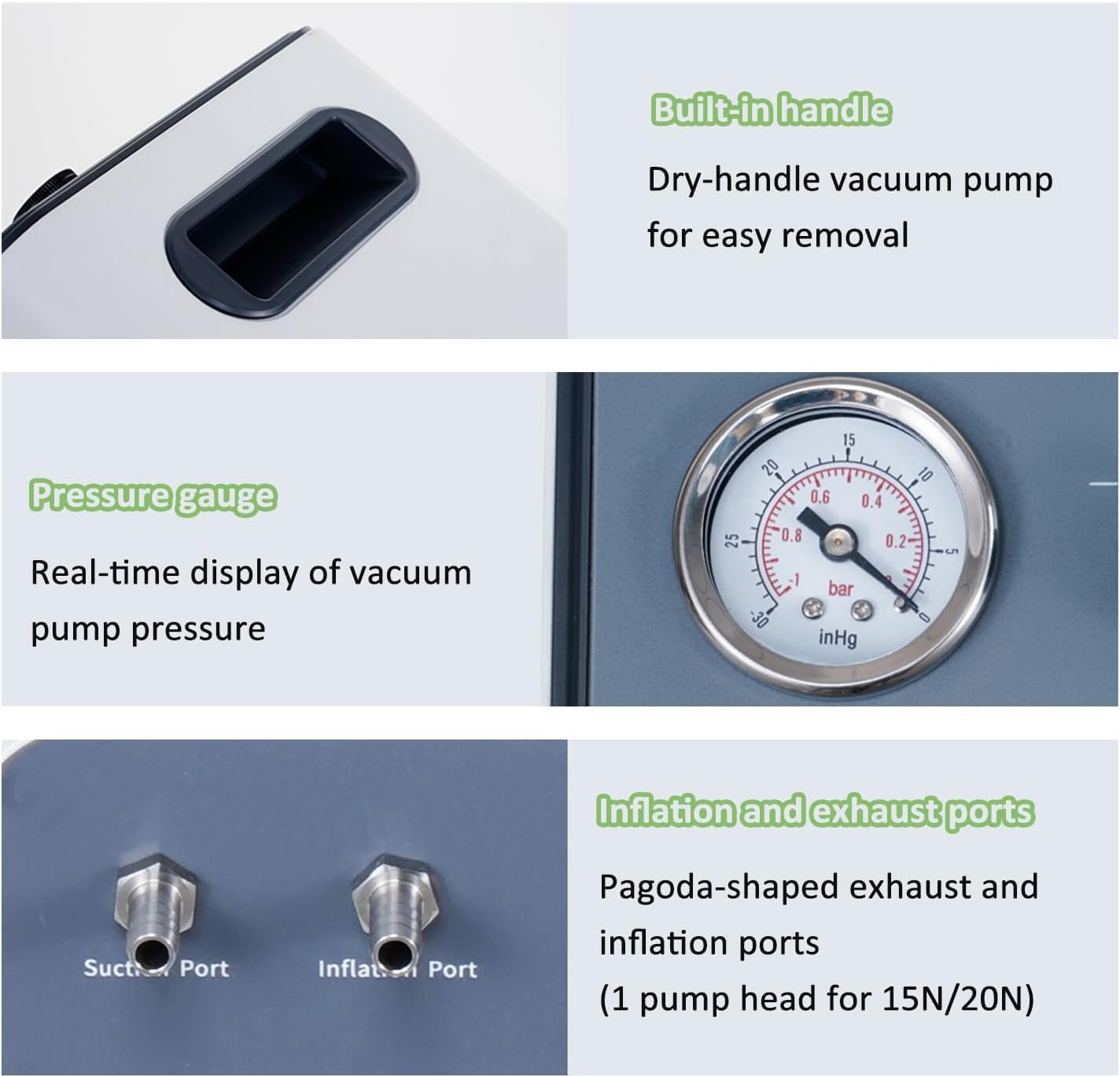

• 【Single/Dual Pressure Mode】: Supports flexible switching between positive and negative pressure modes (maximum vacuum level 0.09 MPa). A pressure gauge displays real-time pressure readings during .

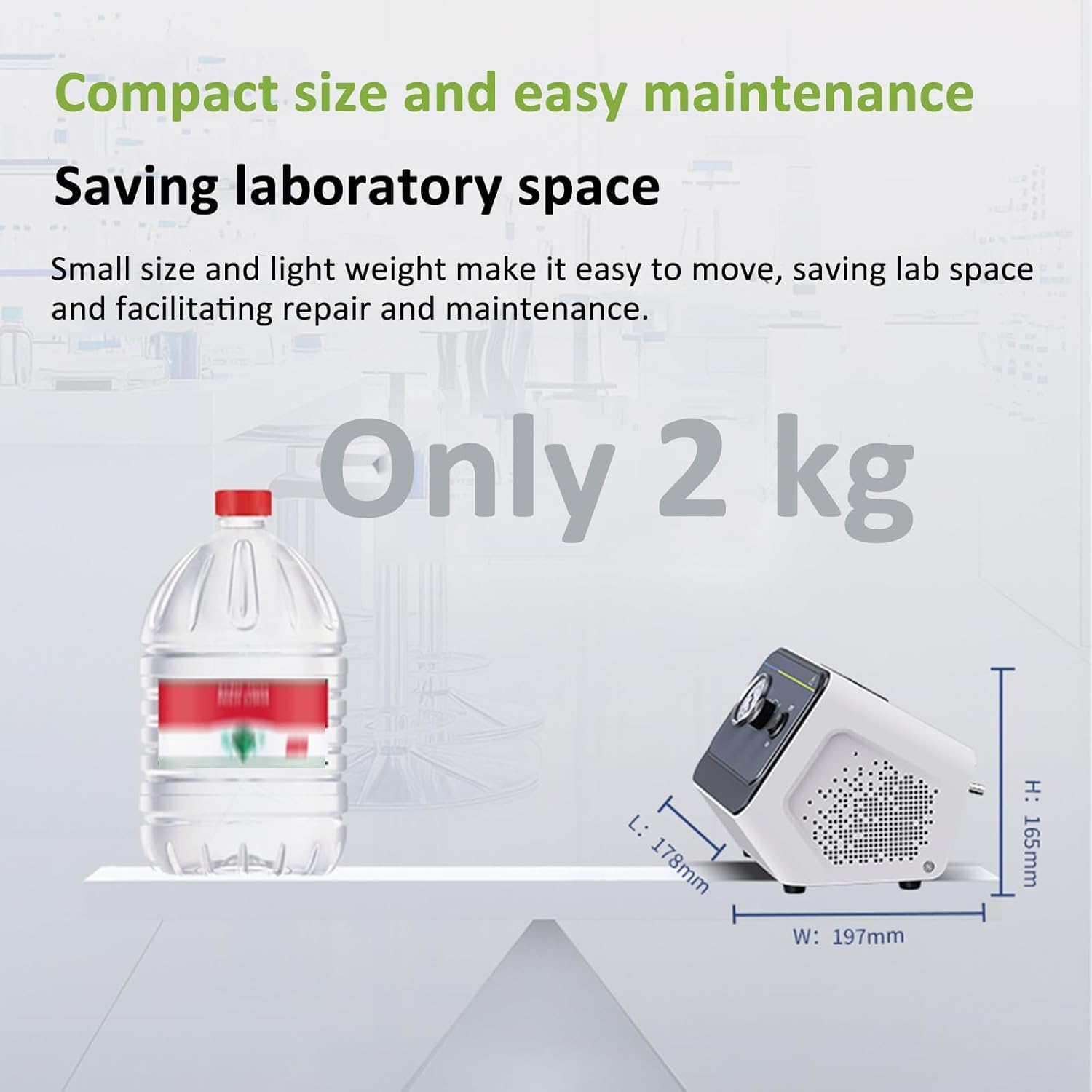

• 【Thinly designed】: The ultra-lightweight 2kg body, built-in carry handle, and rubber feet ensure secure attachment to the workbench, preventing wobbling and ensuring quiet and stable .
• 【Industrial-grade brushless motor】: Utilizing an industrial-grade brushless DC motor, the unit achieves pumping speeds of up to 15 L/min and 20 L/min, with efficient heat dissipation and extended instrument life, meeting the demands of extended experiments.
• 【Wide Applications】: The vacuum pump provides a reliable vacuum source for experimental procedures such as solvent filtration, distillation, vacuum drying, and extraction. It is widely used in applications requiring vacuum pressure, such as solid-phase extractors, solvent filters, and air samplers.
