Max 300A 4 Terminals Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts, Winch, Marine Heavy Duty in Rush 12 VDC E-Z-GO Gas Marathon Models w/ 2 or 4-Cycle Engines
US$7.72
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by pilatesacademy.in
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$7.72
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by pilatesacademy.in
Free 30-day returns Details
Product details
| Management number | 233897408 | Release Date | 2026/06/27 | List Price | US$7.72 | Model Number | 233897408 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Specification】:Max 300a continuous duty solenoid relay: Voltage: 12VDC; Resistance: 14Ω; Capacity: 10.2W; Maximum transient flash current: 300Amp; but Continuous Working Current recommend under 150 Amp,Bracket:Straight,Spst, One circuit: Off - On, Bracket mounting:Holes 5/16 x 19/32 2-13/64 on center

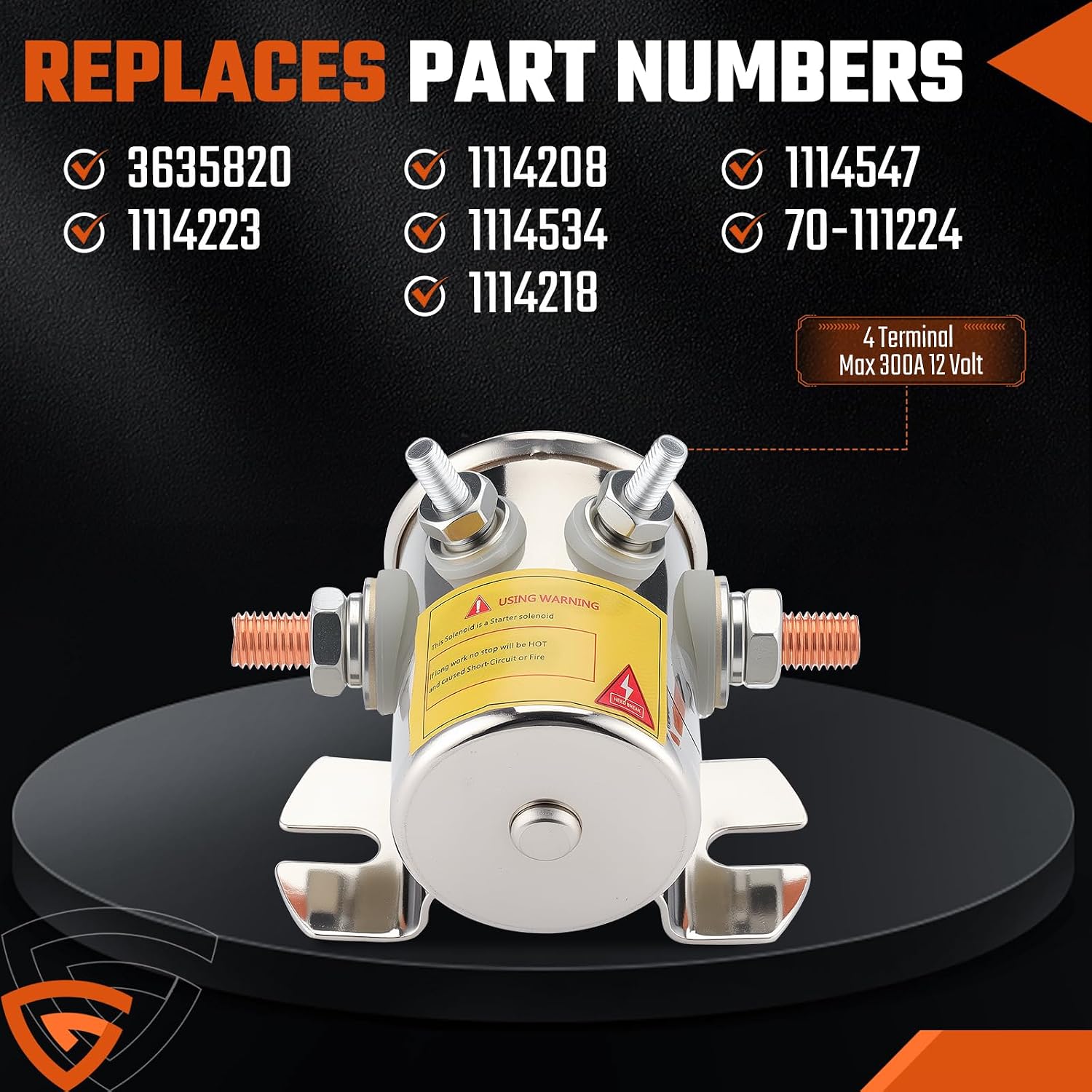

- 【Replaces Part Number】:The Continuous Duty Solenoid Relay Replaces#70-111224，3635820，1114208，1114218，1114223，1114534，1114547
- 【Quality Performance】:The coil uses 180 ℃ copper wire, the electromagnetic relay is made of high-quality components,the contact: normally open (NO)/ 12VDC with 2 copper point. the Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.
- 【Widely Application】:GEARCESS replacement solenoid is Widely Used for Marine, Winch, Military Vehicles, Hydraulic Control Units, Golf Cart, Factory Machines
- 【Warm Note】: The starter solenoid work in the process of started. recommend hold time is 5 minutes, must need a cool rest time for the next start
| ASIN | B0F4KKKMWL |
|---|---|
| Model | AAMAOP00018 |
| Wattage | 10.2 watts |
| Brand Name | GEARCESS |
| Unit Count | 1.0 Count |
| Part Number | AAMAOP00018 |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | GEARCESS |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Current Rating | 300 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 14 Ohms |
| Contact Material | Copper |
| Included Components | 4 Terminal Heavy Duty Solenoid |
| Warranty Description | 1 year warranty |
| Contact Current Rating | 150 Amps |
| Minimum Switching Voltage | 12 Volts (DC) |
