Mini Metal Lathe WM210V Metric Thread 900W Benchtop Metal Wood Horizontal Lathe 50-2500rpm Variable Speed 8"×16" Wood Horizontal Processer with Digital Display 110V

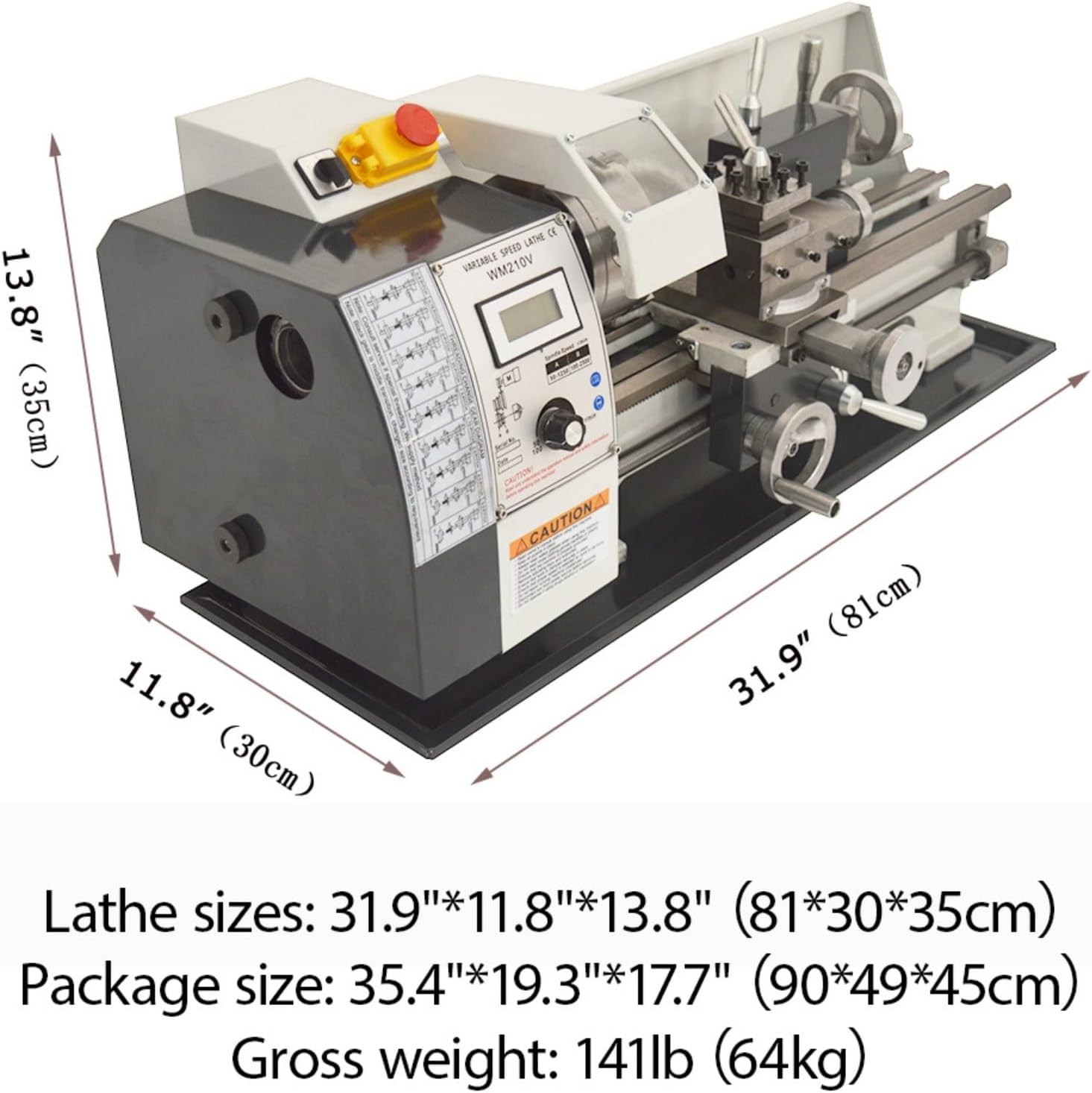

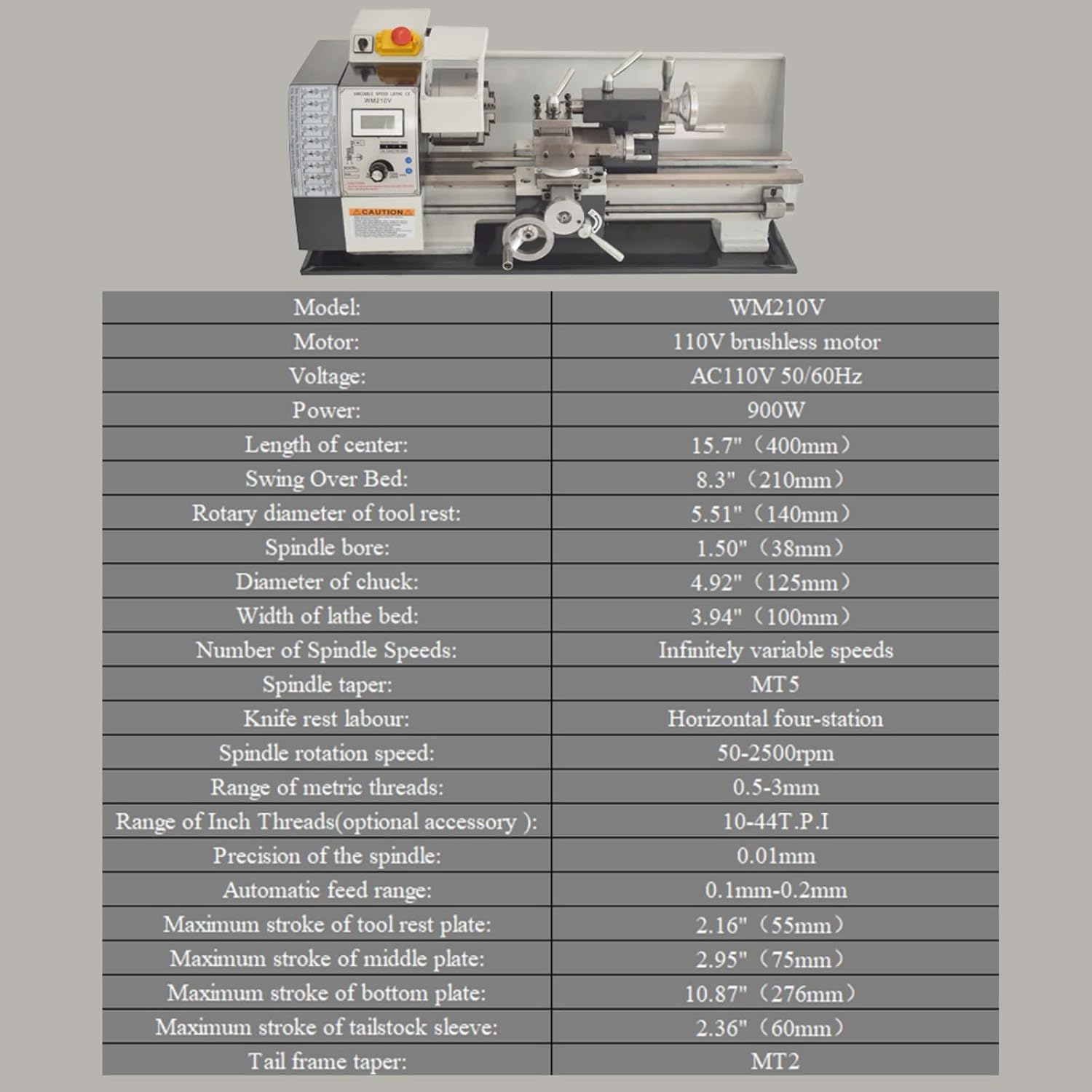

Product Parameters:Model: WM210VMotor: 110V brushless motorVoltage: AC110V 50/60HzPower: 900WLength of center: 15.7"（400mm）Swing Over Bed: 8.3"（210mm）Rotary diameter of tool rest: 5.51"（140mm）Spindle bore: 1.50"（38mm）Diameter of chuck: 4.92"（125mm）Width of lathe bed: 3.94"（100mm）Number of Spindle Speeds: Infinitely variable speedsSpindle taper: MT5Knife rest labour: Horizontal four-stationSpindle rotation speed: 50-2500rpmRange of metric threads: 0.5-3mmRange of Inch Threads(optional accessory ): 10-44T.P.IPrecision of the spindle: 0.01mmAutomatic feed range: 0.1mm-0.2mmMaximum stroke of tool rest plate: 2.16"（55mm）Maximum stroke of middle plate: 2.95"（75mm）Maximum stroke of bottom plate: 10.87"（276mm）Maximum stroke of tailstock sleeve: 2.36"（60mm）Tail frame taper: MT2Lathe sizes: 31.9"*11.8"*13.8"（81*30*35cm）Package size: 35.4"*19.3"*17.7"（90*49*45cm）Gross weight: 141lb（64kg）Item Included (028284)WM210V lathe * 1Chuck Jaw * 3Gear *4 (40/50/60/72)The Screwdriver * 2Open spanner *2Hexagon Wrench *5Oil can * 1The Fuse * 1Chuck Spanner *1English Instruction Manual *1

• High quality: The lathe is made of sturdy cast iron material and undergoes quenching treatment, significantly improving the strength, toughness, and wear resistance of the body, ensuring the stability of the lathe during long-term operation
• Convenient design: The lathe is equipped with a user-friendly operating interface, including a one click start stop switch and forward/reverse switch, making operation more convenient and efficient
• Adjustable speed: The spindle speed of the lathe has the function of continuous adjustment, which means that the operator can choose the most suitable speed according to specific machining needs, thereby significantly improving the efficiency and flexibility of the machining process
• Easy to maintain: The structure of small lathes is relatively simple, and daily maintenance and upkeep work is also relatively easy. Users can quickly solve some common small problems to ensure the stable operation of the lathe
• Wide applicability: This lathe is suitable for processing various materials, including metal, plastic, wood, etc. It can process various rotating surfaces and end faces of rotating bodies. For example, turning inner and outer cylindrical surfaces, conical surfaces, ring grooves, formed cutting surfaces, and turning end faces. Whether it's industrial production or DIY enthusiasts, they can find suitable application areas for themselves
