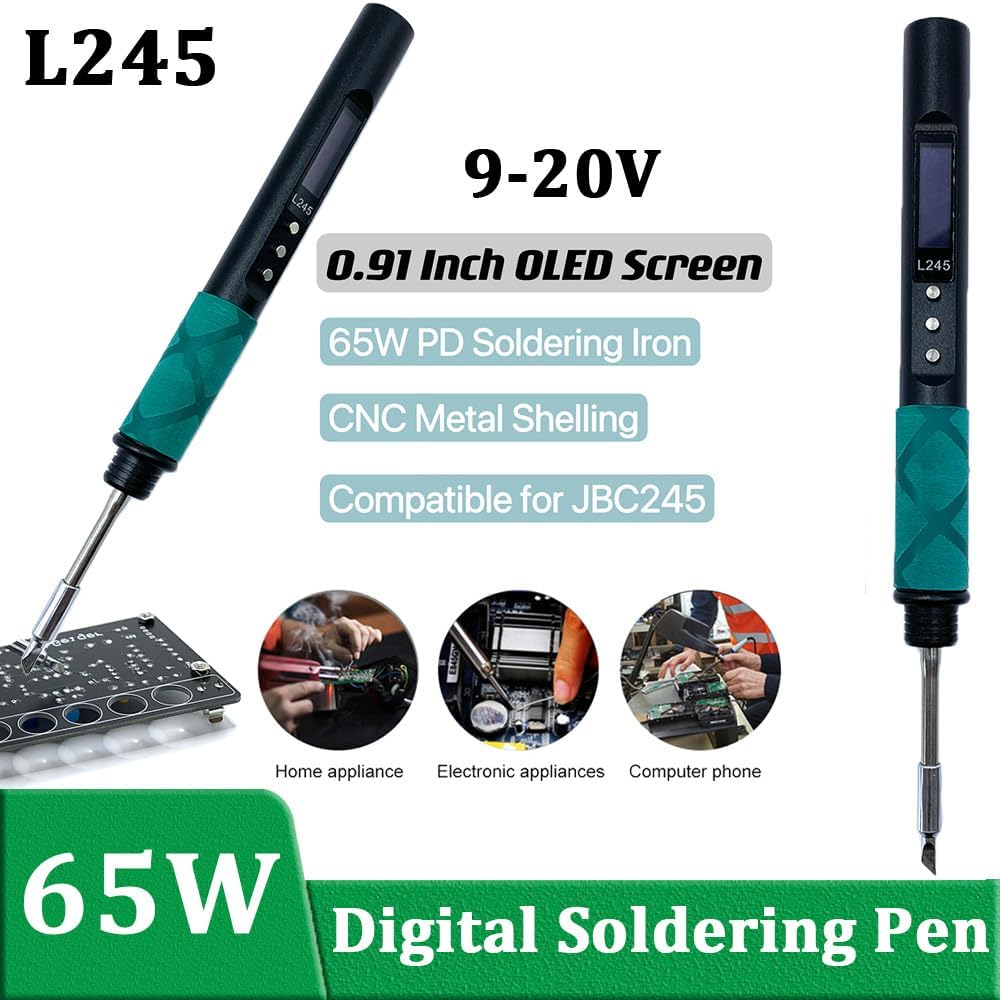

Portable Soldering Iron Soldering Pen OLED Screen L245 Heating Element for Home Appliance Repair Electronic Metal Jewelry DIY

Feature: 1.Fast Heating: It is compatible with QC, PD and other fast charging protocols, and supports DC power supply. If the default L245 heating element is used, the maximum power can reach 65W. The default L245 heating core is customized, with very good heating/temperature recovery efficiency and large heat capacity. Solder joints of all sizes are easy to melt. 2.OLED Screen Can Display Rich Contents: Temperature gear, set temperature, voltage, internal temperature, actual temperature of heating element, heating power and power percentage. Under the condition of ensuring the same power, the working mode of large voltage and small current is adopted to reduce the dependence on C-type line, without the support of emark chip. 3.Multi Functions: Automatic standby, vibration wake-up, automatic shutdown, time, temperature, parameter setting and calibration. Support Chinese and English switching. You can quickly set and adjust the temperature with only 3 keys. The decoy voltage can be set directly in the menu (it can be set automatically according to the parameters of the charging head). 4.Material and Application: This product is made of aluminum alloy by numerical control processing and sandblasting and anodizing processes. Customized L245 heating element, heating and temperature return speed is very fast! It is not only sturdy, but also feels very good. It is an indispensable good tool for electronic maintenance, electronic DIY, etc! 5.Satisfaction Guarantee: We strive to provide each customer with the highest standard of customer service to ensure you have a pleasant shopping experience. If you have any issues, inquiries or need assistance, please feel free to contact us directly. Specification: Certification: CE Origin: Mainland China Power: 65W (using the default L245 heating core) Temperature control range: 0-480 degrees Heating core: L245 (customized); Compatible with JBC245 (DC mode is required, and the machine can only be started when the voltage is greater than 20V) Power interface: TYPE-C Fast charging protocol: QC/PD Power supply range: 9-20V Internal resistance of L245 heating core: 6.5 Ω Length: About 150mm/5.90inch instructions: 1. For fast temperature adjustment: press the middle key to select CH: ON to open step adjustment, press the left and right keys to quickly call the five component step pre stored temperature according to the preset step temperature 2. For normal temperature regulation: Press the middle key to select CH: OFF to turn off hierarchical regulation, press the left key to reduce the temperature according to the set temperature step, and press the right key to increase the temperature to adjust the temperature. 3. Press and hold the middle key for more than 3 seconds to enter the menu setting, and you can adjust each item according to the menu description. After entering the lower menu, long press for 3 seconds to return to the upper menu. Tips: 1. Before use, you must confirm the condition of your charging head. If you can only provide 5V power without supporting PD, please replace the charging head for QC fast charging protocol. 2. Setting method of decoy voltage: If the charging head is above 65W, no setting is required. 3. If the power of the charging head is insufficient, the default setting of the stylus is trap 20V. If the charging head does not support it, it will automatically jump to the maximum allowable voltage gear. If the screen flashes during use, it indicates that the charging head has insufficient power and does not support the current limiting function. At this time, you need to check the range of the output parameters of the charging head and obtain the current value by dividing the maximum support voltage by 6.5. If the calculated value is lower than the current value provided by the corresponding voltage marked on the charging head, the voltage will be set as a trap. 4. Due to the oxidation treatment of the NC shell, there may be small scratches or slight oxidation defects. Please forgive me! 5. DC mode refers to the direct use of external DC12-20V full power supply to supply power to the stylus through TYPEC cable, instead of using the fast charging protocol charging head. 6. The default heating core is custom heating core L245, which only supports 65W at most Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement. 1 x Electric soldering iron 1 x L245 3.2K heating element

• 1.Fast Heating: It is compatible with QC, PD and other fast charging protocols, and supports DC power supply. If the default L245 heating element is used, the maximum power can reach 65W. The default L245 heating core is customized, with very good heating/temperature recovery efficiency and large heat capacity. Solder joints of all sizes are easy to melt.

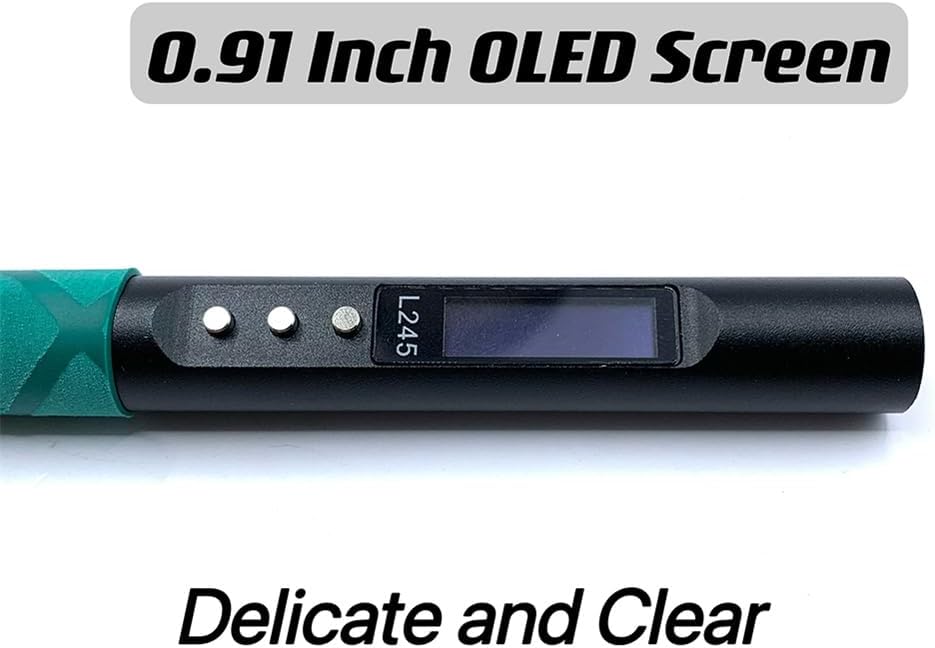

• 2.OLED Screen Can Display Rich Contents: Temperature gear, set temperature, voltage, internal temperature, actual temperature of heating element, heating power and power percentage. Under the condition of ensuring the same power, the working mode of large voltage and small current is adopted to reduce the dependence on C-type line, without the support of emark chip.
• 3.Multi Functions: Automatic standby, vibration wake-up, automatic shutdown, time, temperature, parameter setting and calibration. Support Chinese and English switching. You can quickly set and adjust the temperature with only 3 keys. The decoy voltage can be set directly in the menu (it can be set automatically according to the parameters of the charging head).
• 4.Material and Application: This product is made of aluminum alloy by numerical control processing and sandblasting and anodizing processes. Customized L245 heating element, heating and temperature return speed is very fast! It is not only sturdy, but also feels very good. It is an indispensable good tool for electronic maintenance, electronic DIY, etc!
• 5.Satisfaction Guarantee: We strive to provide each customer with the highest standard of customer service to ensure you have a pleasant shopping experience. If you have any issues, inquiries or need assistance, please feel free to contact us directly.
