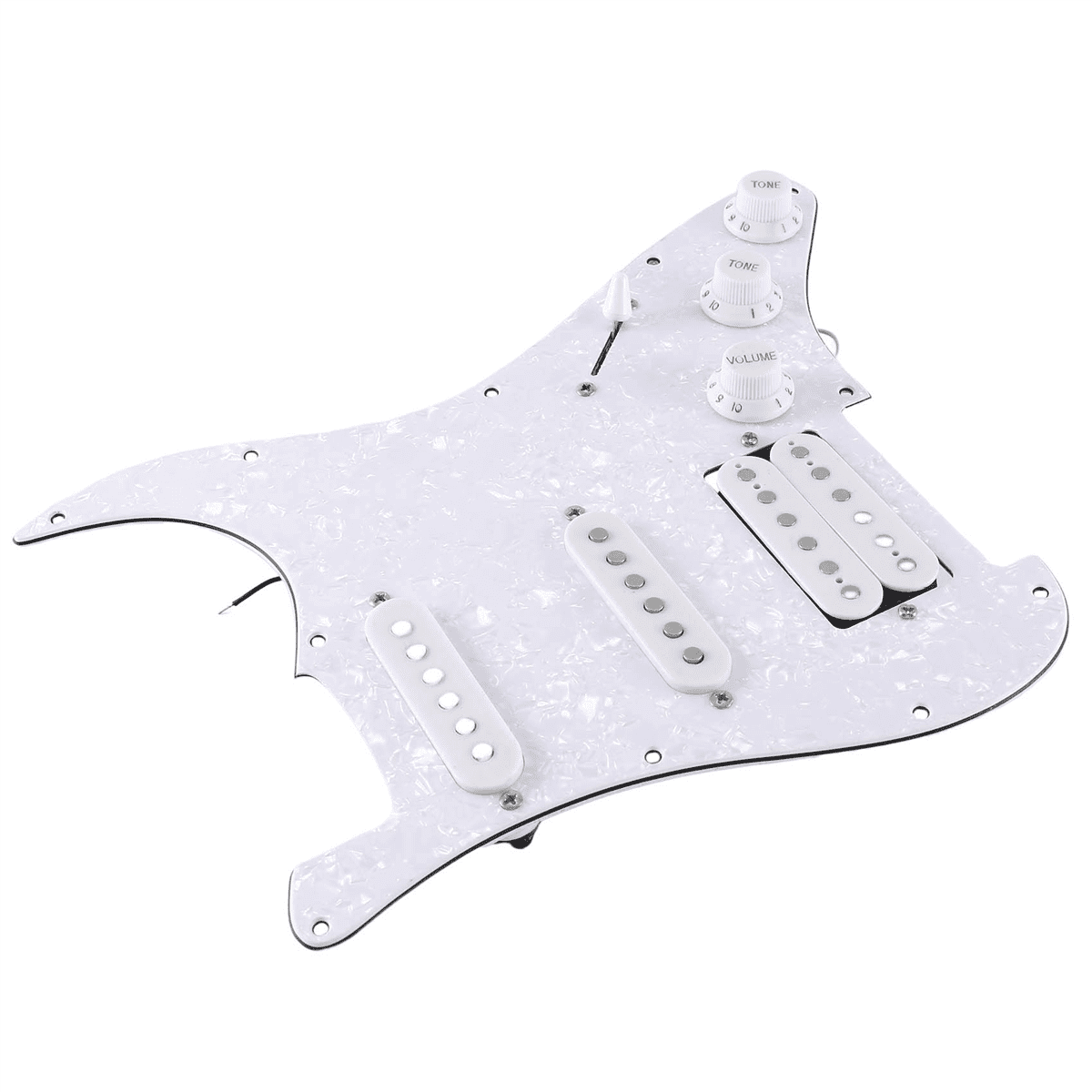

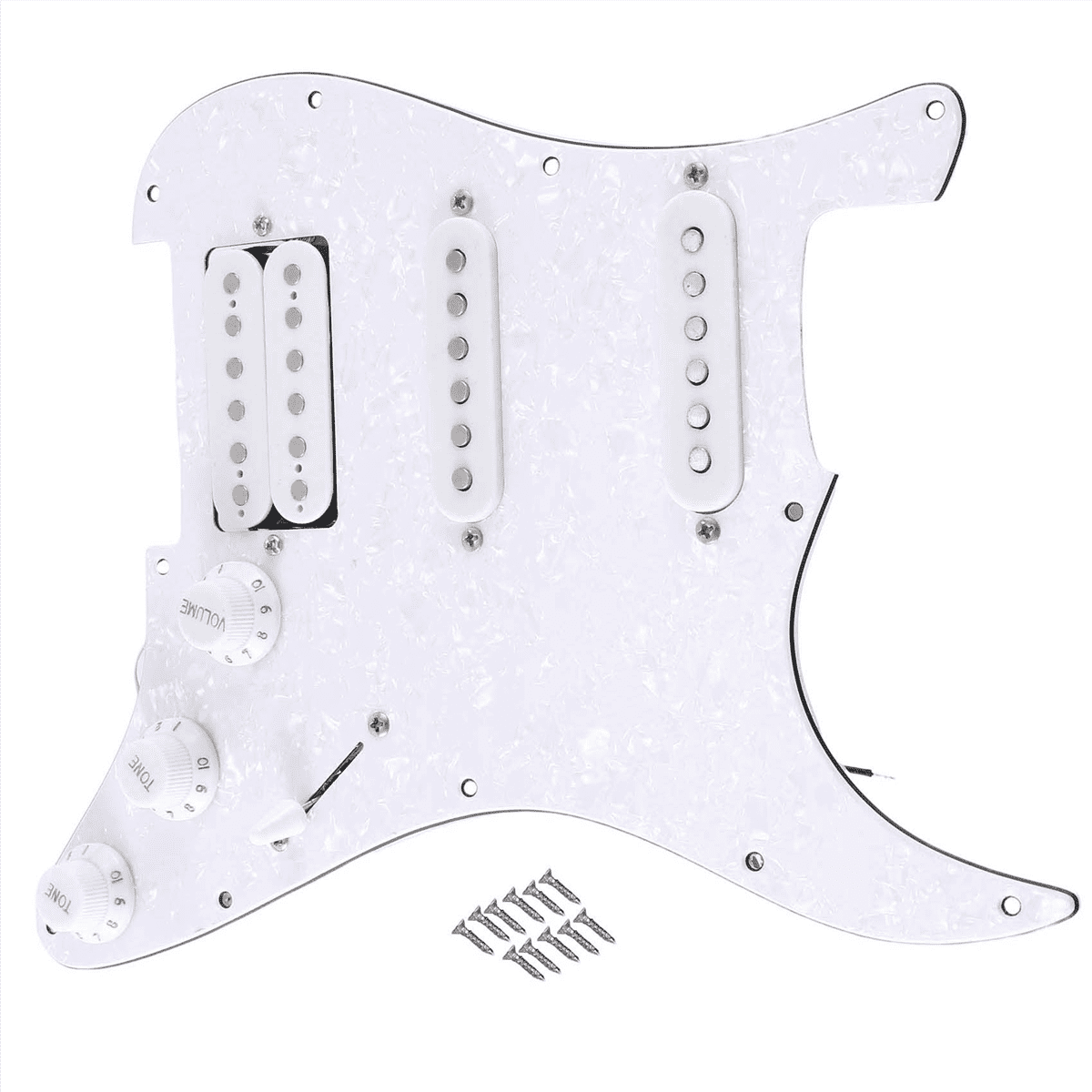

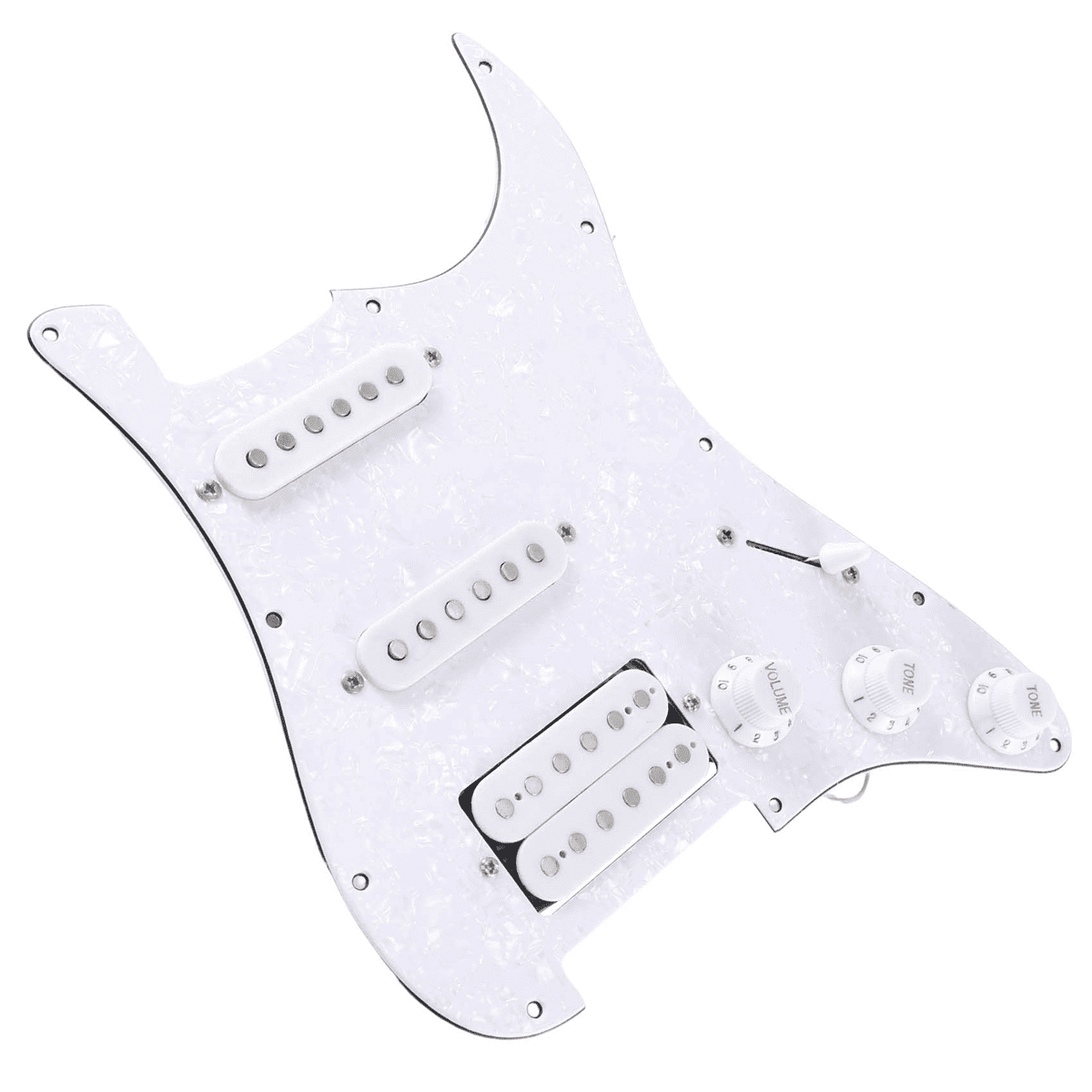

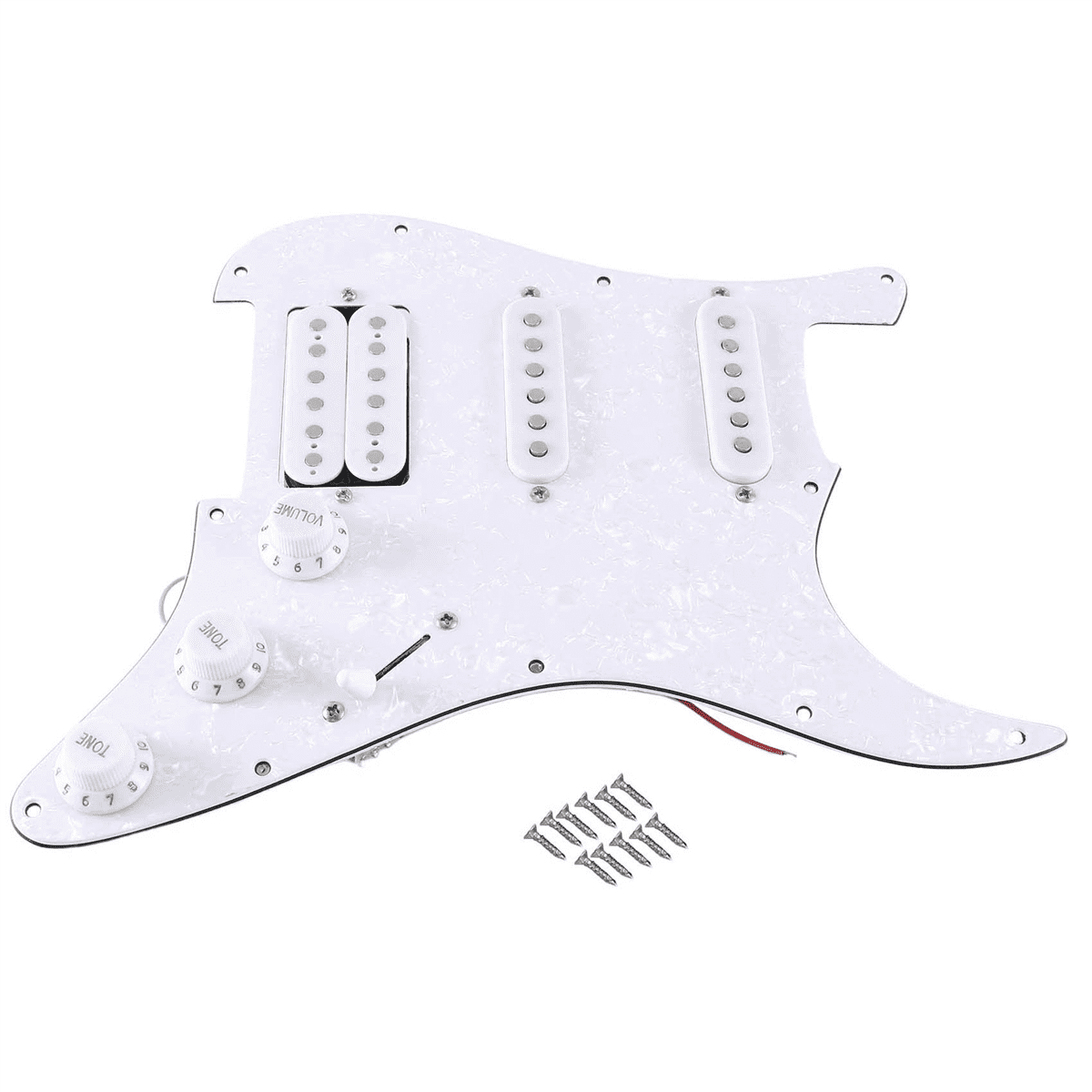

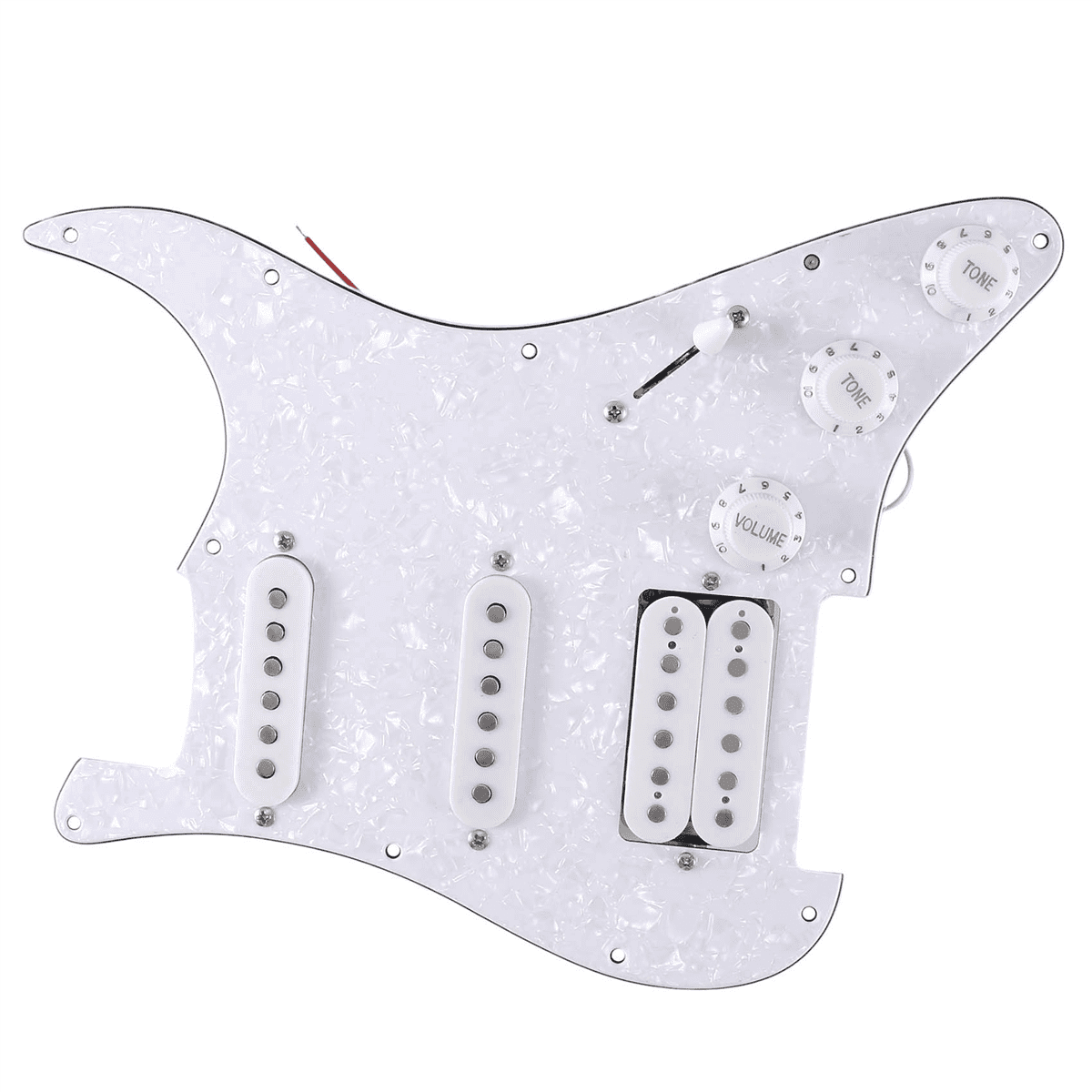

SQ Electric Guitar Loaded Prewired Electric Guitar Pickguard Pickup Assembly White Pearl,1 * Prewired Pickguard Set,White

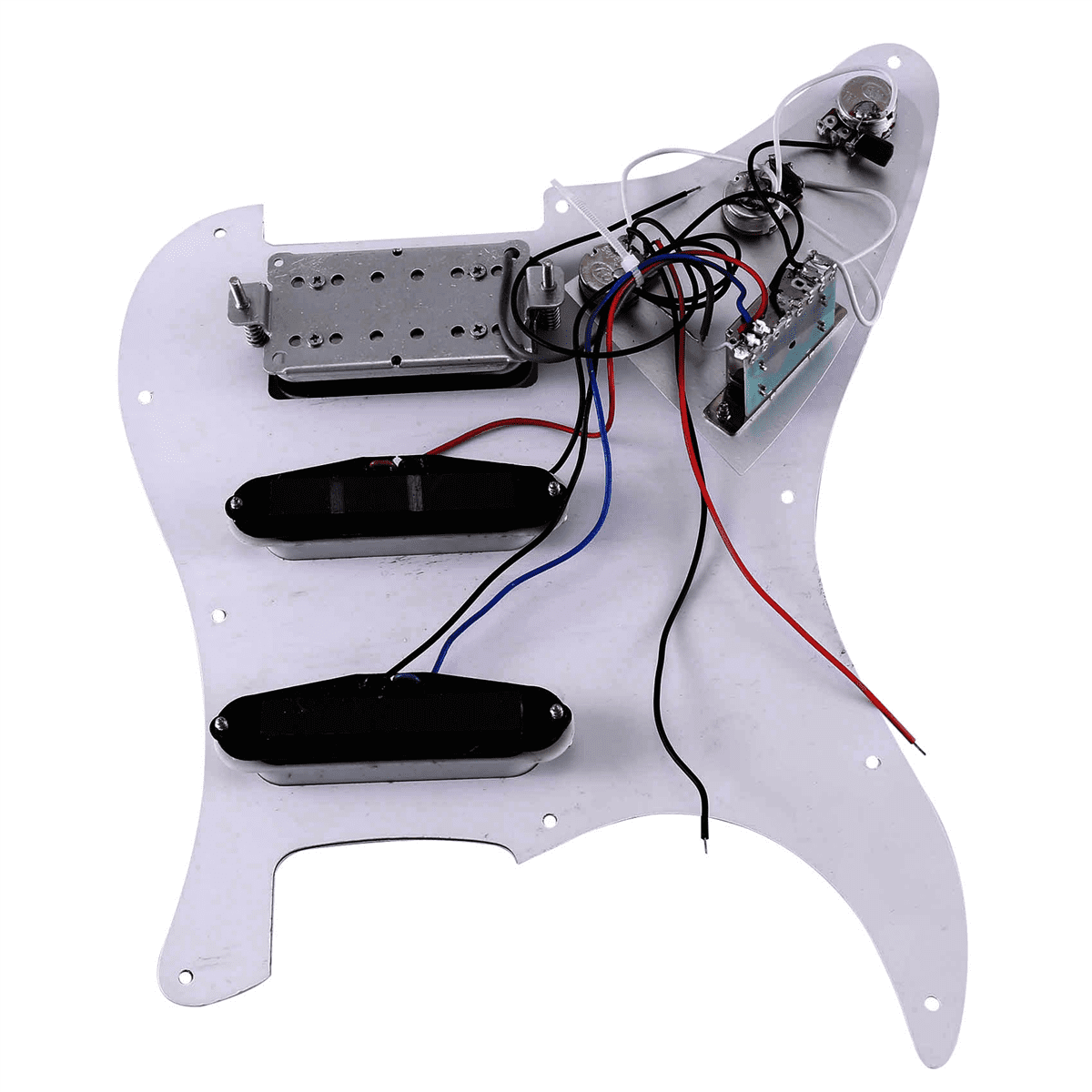

1 volume and 1 tone control knobs white with golden number.<br>5-way pickup toggle switch<br>Using Braided fiber cable connect,better reduce circuit noise.<br>All you have to do is solder the input jack and your ready to play.<br>Pickguard:4 layers 11 Holes SSH Guitar Pickguard,with pure aluminum foil shielded in the back side and protective film on the top.<br>Neck Position:Single-Coil ,48mm Resistance about 5.5k<br>Middle Position:Single-Coil Pickup,Ceramic Magnet,Flat Fixed Pole Pieces,Pole Spacing 52mm,Resistance: 5.5k ohm.<br>Bridge Position:Double Coil Humbucker Pickup, Magnet,6 Fixed &amp; 6 Adjust Pole Pieces,Pole Spacing 52mm,Resistance: 9.5k ohm .<br>Knob&amp;Pots:1T1V Knobs,Korean Alpha Pots,A500k Pots for Tone,B500k Pot for Volume.<br>5-Way Pickup Toggle Switch with Cap.<br>Note: <br>The aluminum foil shield on backside is not flat; it is with some creases and patches caused during the processing.<br>There are many styles of guitars on the market. The fixing holes on the panel may not be completely overlapped. Just lock them directly on the panel, which not affect the use. If you mind, please consider carefully.<br>Type:White Pearl<br>Colour:White<br>Material:Metal+PVC<br><br>Package Contents:<br>1 * Prewired Pickguard Set<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

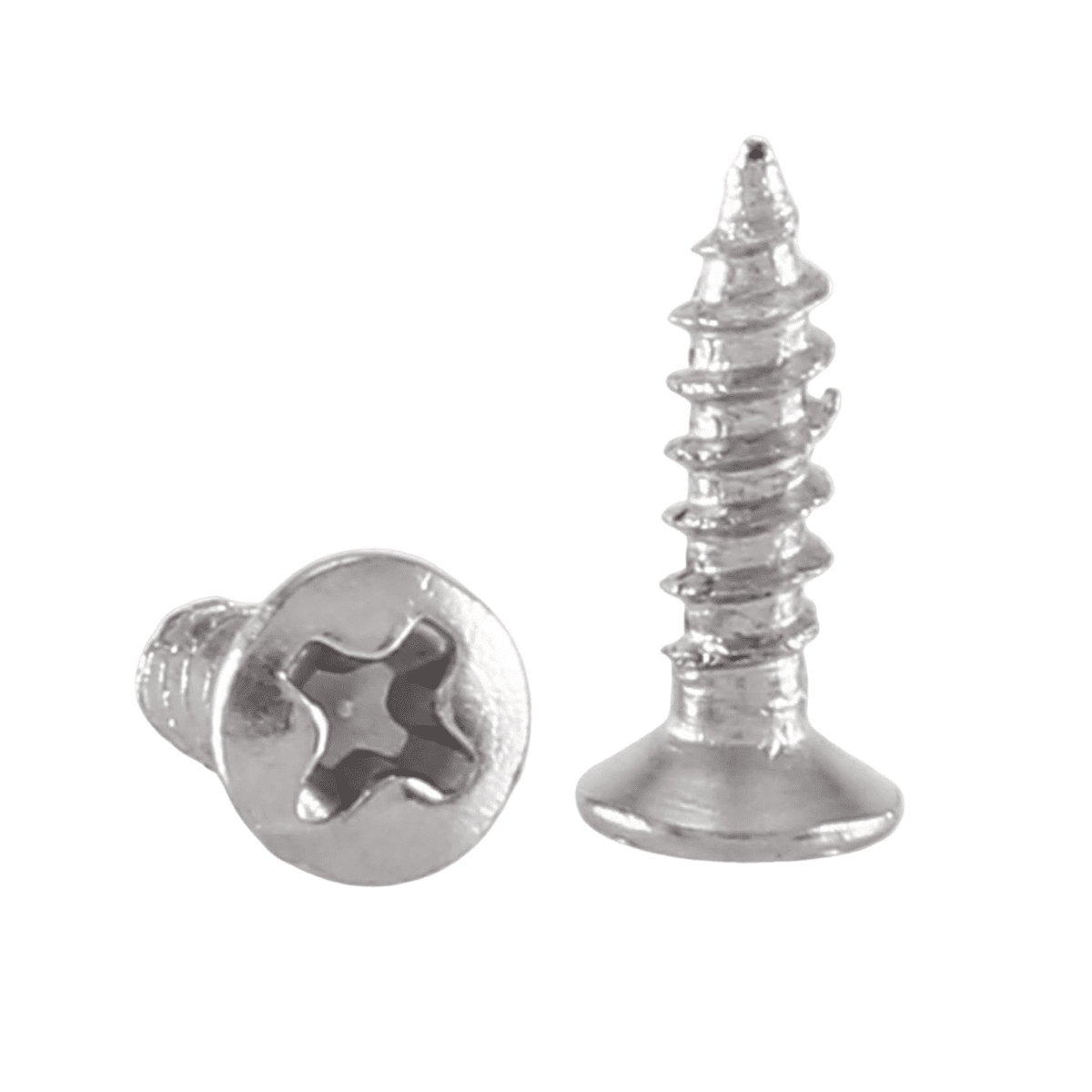

• A Set Loaded Prewired SSH Guitar Pickguard & Screws.
• Using 500K potentiometer,,reduce noise.
• 11 holes SSH pickguard comes with full set of pickups,switch,knobs and prewired circuit.
• pickups:Neck Dual Rail Humbucker Pickup/Middle Single Coil Pickup/ Bridge Double Coil Humbucker Pickup.
• Fit for FD Style Guitar Parts Replacement.
